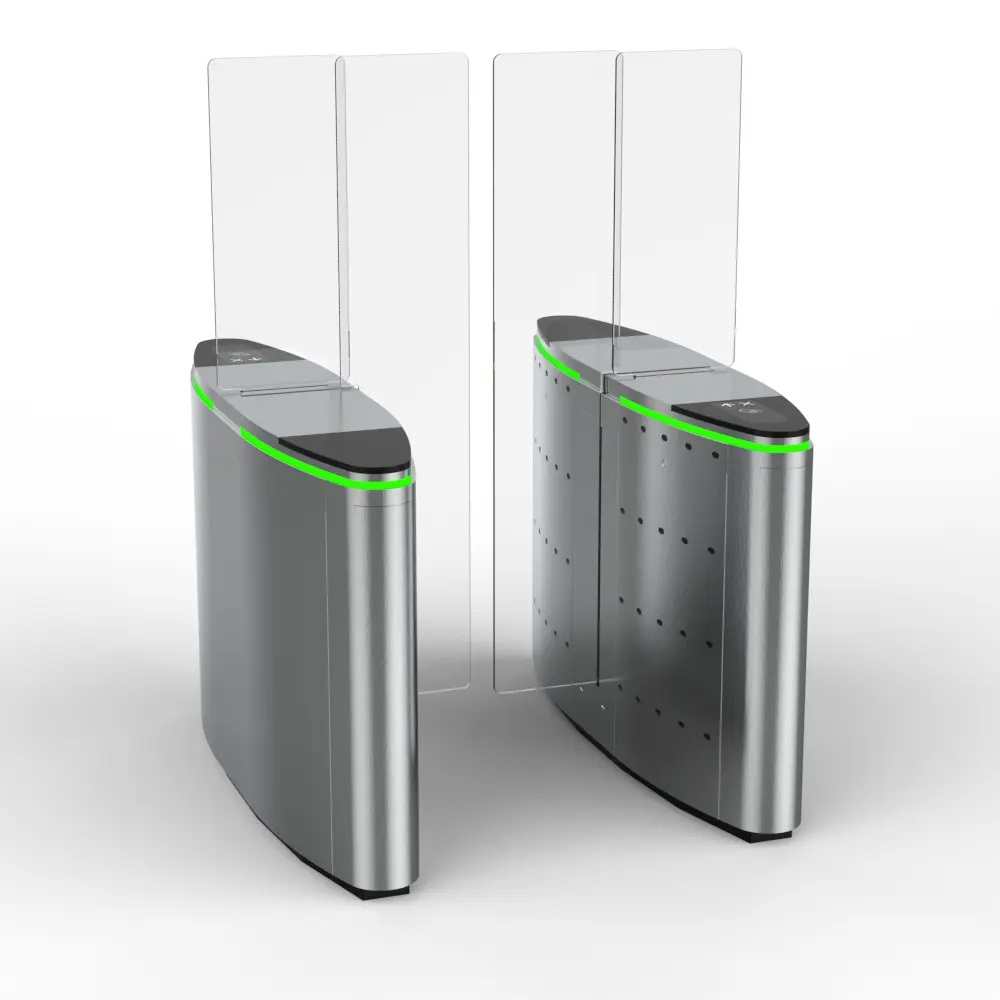

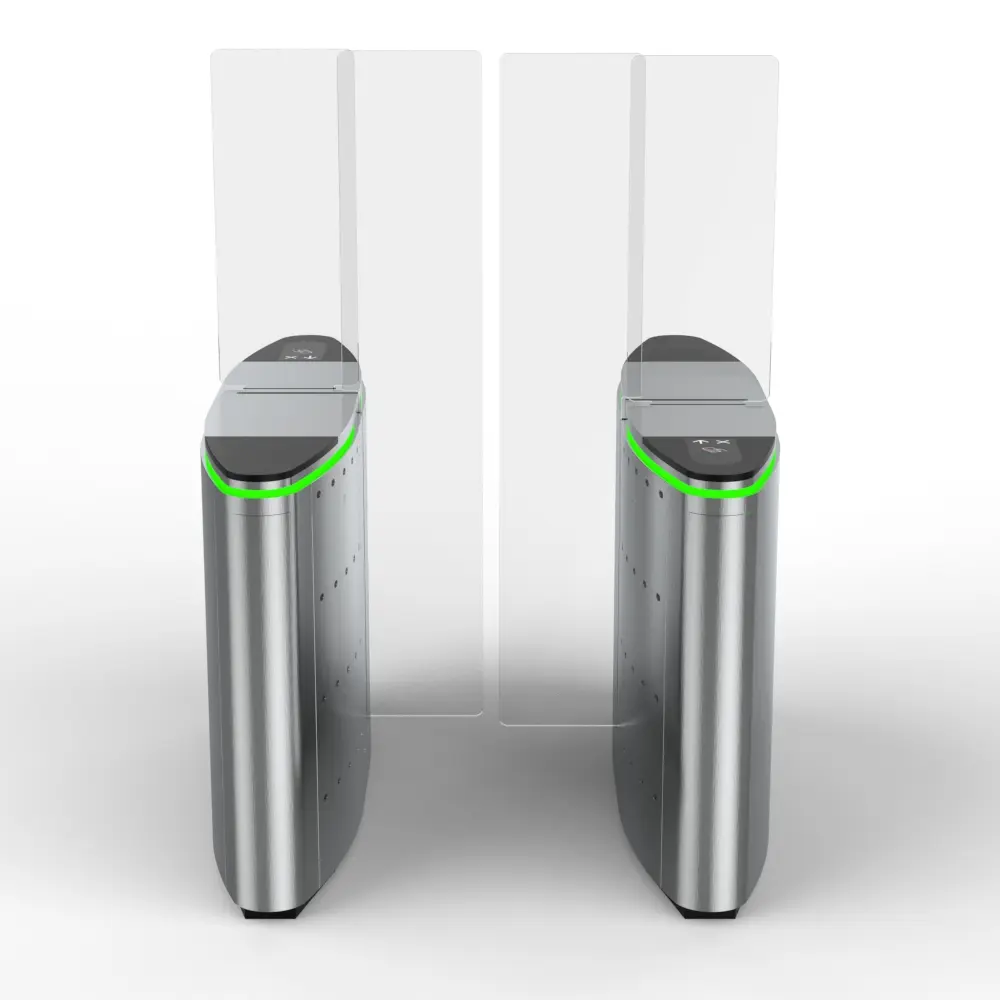

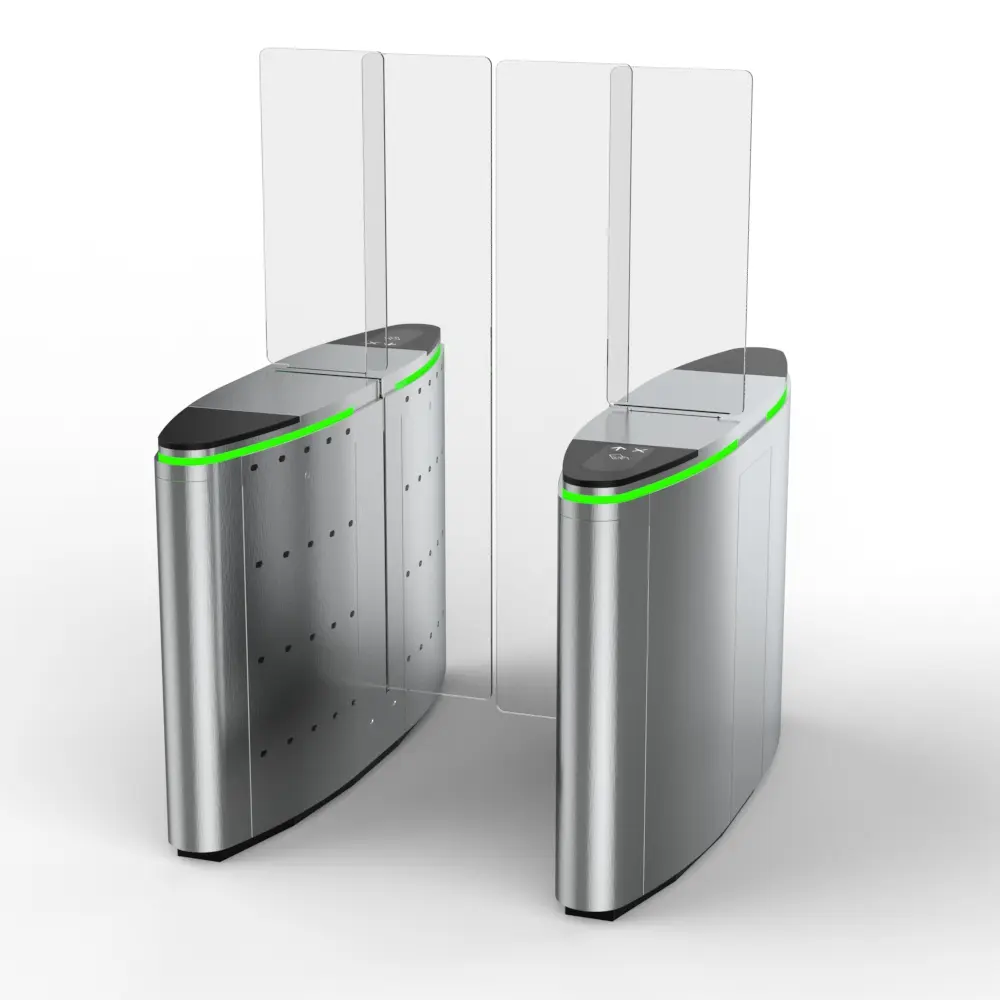

China JJR offers flap barrier turnstiles with multiple safety features including anti-tailgating, anti-reverse, and anti-pinch protections to ensure safe passage. The product is crafted with premium SUS304 stainless steel (brushed finish) and aluminum alloy (oxidized finish), ensuring durability and a lasting shine. Equipped with a high-performance CPU and industrial-grade 32-bit ARM processor, it provides outstanding speed and reliability.
Flap Barrier Turnstile Specifications
- Dimensions: 1500*350*1007mm (L*W*H)
- Materials:
- Body: SUS304 stainless steel (brushed finish), 1.5mm thickness
- Top Cover: Aluminum alloy (oxidized) + tempered glass panel, 25mm thickness
- Passage Width: 550mm (including 50mm gap), tempered glass with explosion-proof film, 10mm thickness
- Input Voltage: Servo motor DC24V
- Humidity: ≤95%, non-condensing
- Operating Temperature: -20℃ to 70℃
- Opening Signal Input: Dry contact, RS485
- Throughput Speed: 30–40 people/min
- Protection Rating: IP22
- Infrared Sensors: 8 pairs (expandable)
- Environment: Indoor use
- Lifespan: ≥5 million cycles
Flap Barrier Turnstile Features
- Auto Reset: Gates automatically reset if not passed within the allotted time.
- Power-Off Unlock: Automatically unlocks with alarm in case of power failure.
- Power-On Self-Test: Self-check upon power-up, followed by automatic closure and alarm.
- Anti-Collision and Anti-Pinch: Triple anti-pinch technology prevents accidents.
- Alarm System: Alerts for unauthorized entry, reverse passage, tailgating, or timeout.
- Fire Emergency Mode: Integrates with fire alarms to open gates during emergencies.
Visitor Access Applications
- Visitor access verification methods: QR code, card swiping, facial recognition, etc.
Multiple Authentication Methods
- Card Access: Supports IC/ID card systems with one-way or two-way card reading.
- QR Code Recognition: Quick and convenient passage via mobile QR code scanning.

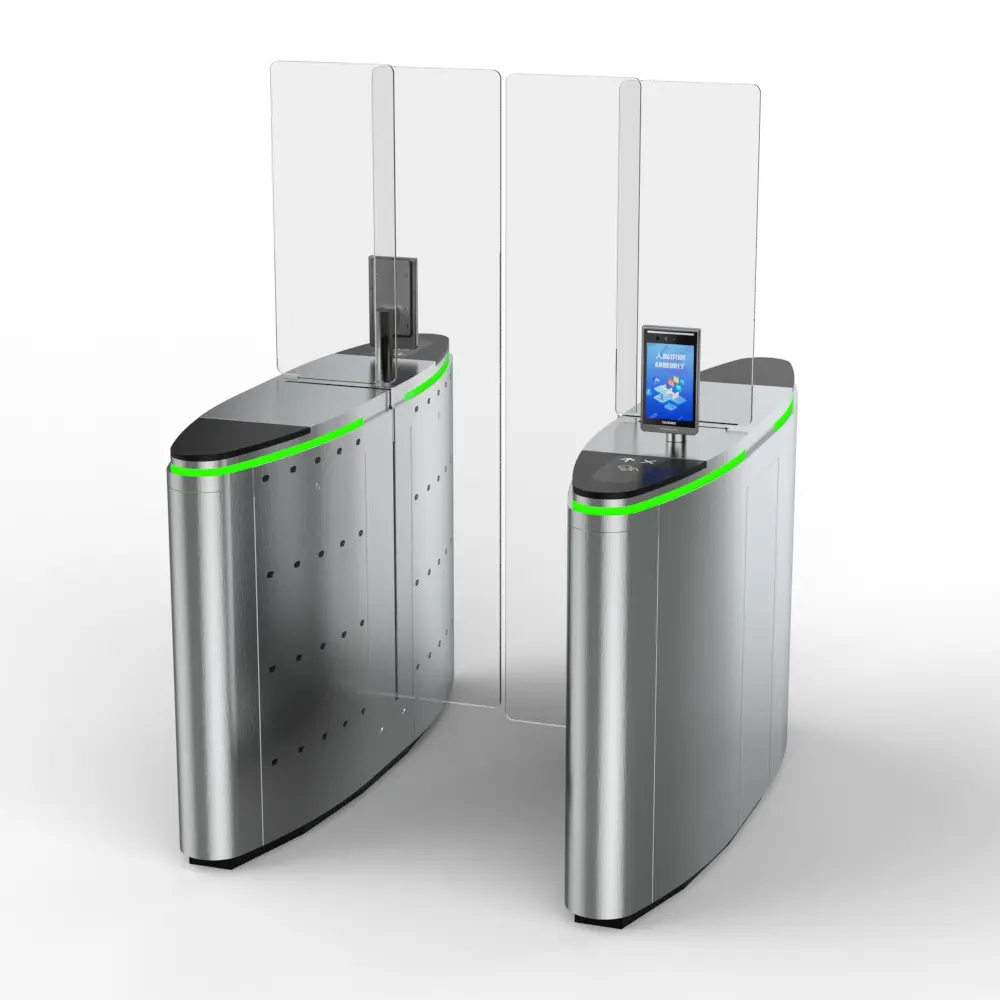

- Facial Recognition: Dynamic dual-camera anti-spoofing for fast authentication.
- ID Verification: Combines facial recognition with ID verification for enhanced security.
Protective Functions
- Anti-Tailgating: Multiple infrared beams monitor passage, ensuring one card per person, with alarm alerts.
- Anti-Reverse: Infrared sensors detect reverse passage, automatically block entry, and trigger an alarm.
- Anti-Pinch and Anti-Collision Technologies:
1. Infrared anti-pinch and anti-collision
2. Logical anti-pinch and anti-collision during passage
3. Electric current detection for anti-pinch and anti-collision
Flap Barrier Turnstile Core Technology
- High-Performance CPU:
- Industrial-grade 32-bit ARM processor
- 32-bit architecture: Low power consumption with powerful functionality
- Multi-core structure: Fast processing and high execution efficiency
- RISC system: Compact size and low power consumption
Servo Motor with Sine Wave Control Technology
- Low power consumption
- Minimal noise
- Long lifespan
- Stable operation
- Over 5 million cycles
Modern Design with High-Tech Appeal
- Premium materials with durable and sleek finishes:
- Sliding Gate Thickness: 10mm tempered glass (explosion-proof film)
- Panel Thickness: 5mm tempered glass panel
- Top Cover Thickness: 25mm aluminum alloy (oxidized finish)
- Body Thickness: 1.5mm SUS304 stainless steel (brushed finish)
China JJR delivers a sophisticated, secure, and durable flap barrier turnstile suitable for high-traffic areas with cutting-edge technology and sleek aesthetics.
