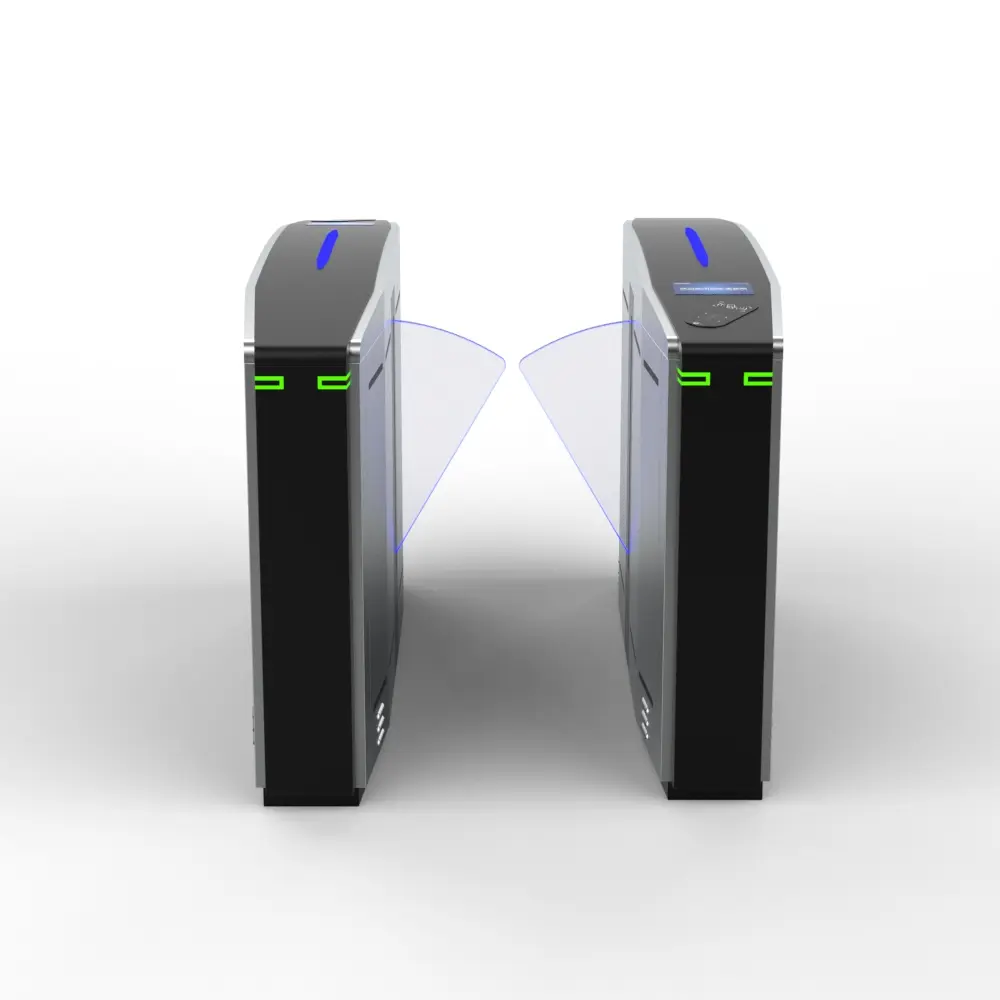

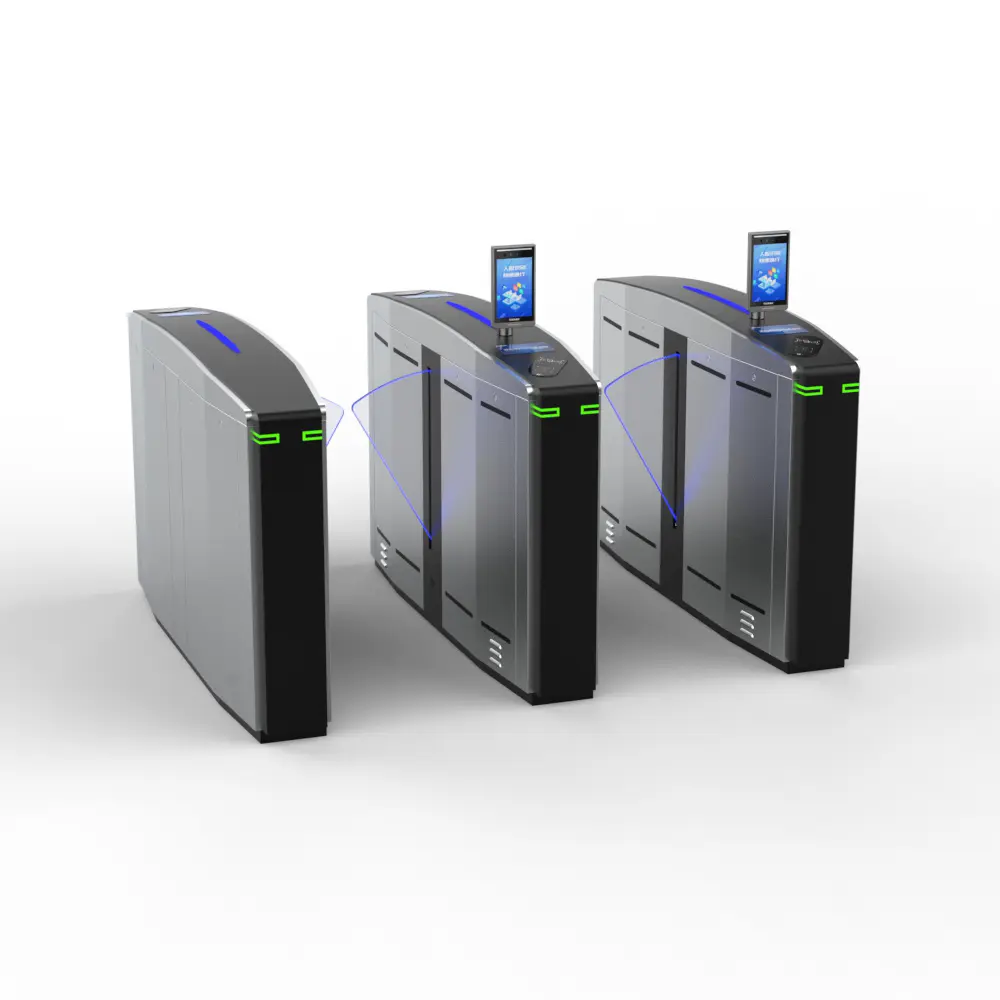

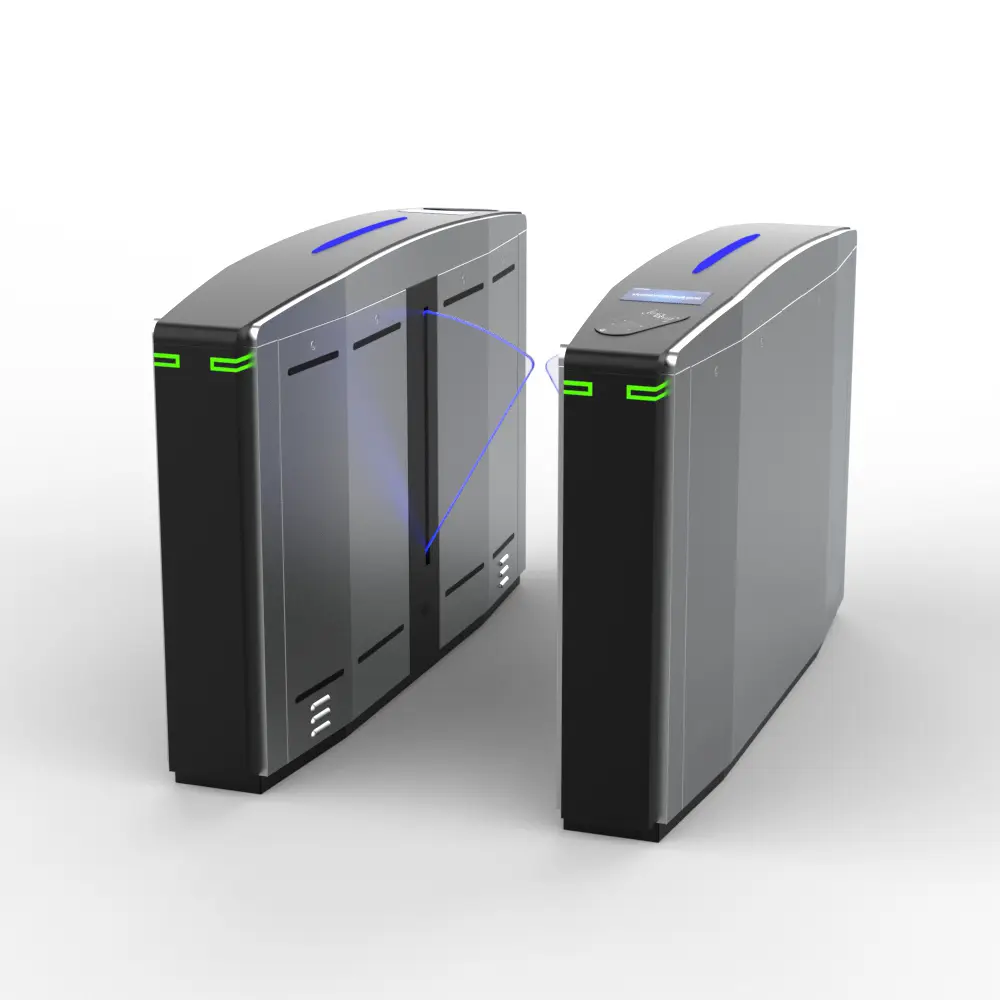

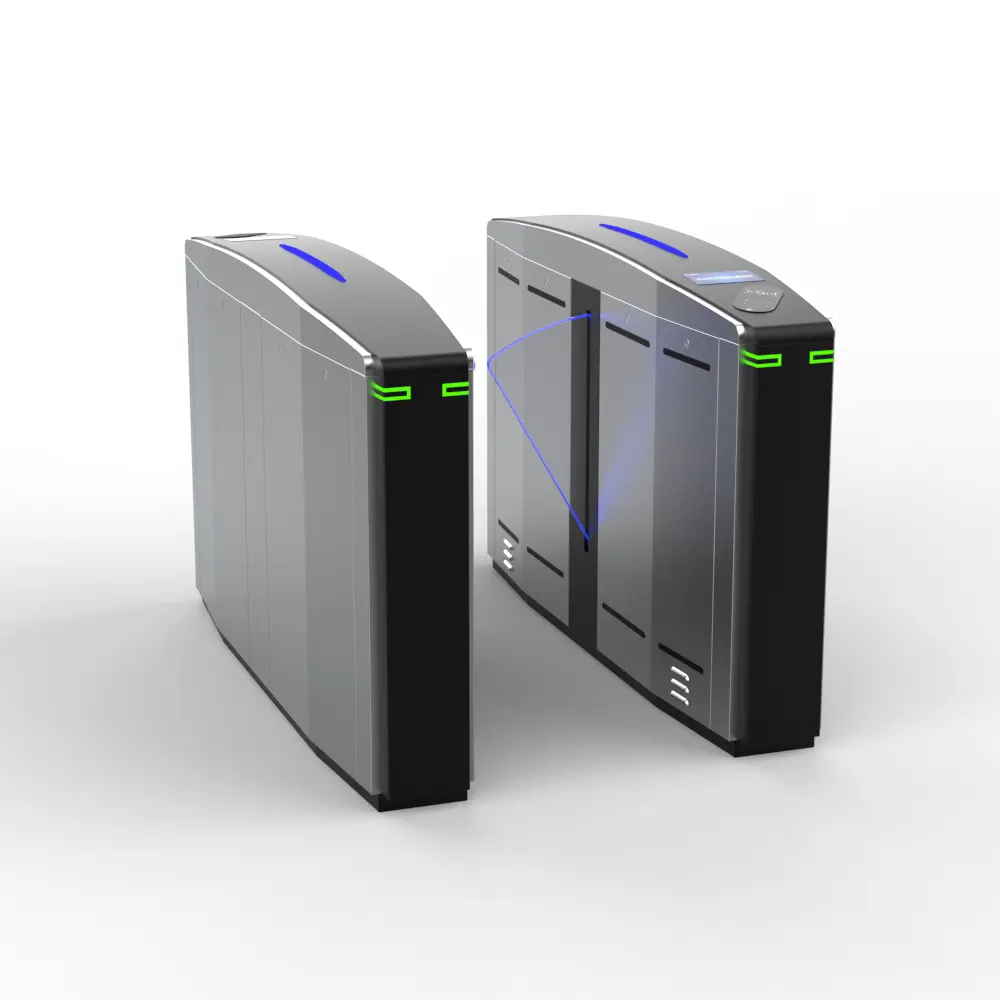

The flap barrier access control system developed by China JJR combines stylish and stable industrial design concepts. It offers custom colors for scenic spots, venues, and high-end scenarios. The system features a brushless DC motor with a servo control system, ensuring a fault-free operation of at least 5 million cycles. It supports various identification methods including cards, IDs, face recognition, QR codes, fingerprints, and vein scanning.
Type: Flap Barrier
Functions: Power-off gate opening, supports face recognition, QR code recognition, fingerprint recognition, etc.
Flap Barrier Access Control System Technical Specifications
- Dimensions: 1600×280×1000mm
- Material: SUS304 brushed stainless steel + powder coating, top cover 2.0mm, body 1.5mm
- Passage Width: ≤550mm (including 50mm gap), acrylic material
- Input Motor: DC brushless motor DC24V
- Drive Mode: Digital
- Operating Temperature: -20℃ to +70℃
- Relative Humidity: <95%, non-condensing
- Passage Speed: 30~40 persons/min
- Gate Opening Signal Input: Dry contact, RS485
- Infrared Pairs: 7 pairs
- Protection Level: IP24
- Device Lifespan: Not less than 8 million cycles
- Operating Environment: Indoor
Flap Barrier Access Control System Functions
- Automatic Reset: If passage is not made within the specified time, the gate will automatically reset.
- Power-off Unlock: Automatically unlocks when power is off and gives an alarm.
- Power-on Self-check: After power-on, the system performs a self-check and automatically closes, with an alarm prompt.
- Anti-collision and Anti-pinch: Three-tier anti-pinch technology to prevent injuries or item damage.
- Alarm Function: Alerts for illegal entry, reverse passage, tailgating, or time-out passage.
- Fire Linkage: Links with fire alarm systems, automatically opening the gate when an alarm is triggered.
Visitor Passage Application
Visitor Passage Verification Methods: QR code, card swipe, face recognition, etc.
Multiple Verification Access Methods
Supports the extension of multiple verification methods:
1. Card Access: Expandable with IC/ID card access control, supporting single-way or two-way card swipe.
2. QR Code Recognition: Scans QR codes from mobile phones for easy access.
3. Face Recognition: Dynamic dual-camera anti-counterfeit facial recognition for quick verification.
4. Identity Verification: Face + ID card recognition for precise and secure gate opening.
Premium Materials and Craftsmanship
- Body Material: High-quality SUS304 stainless steel brushed + powder-coated top cover, 2.0mm thickness for the cover and 1.5mm for the body.
- Performance: Corrosion-resistant, wear-resistant, high-temperature resistant, and anti-oxidation.
Infrared Detector
Uses the next-generation infrared detection technology with smart optical sensors to ensure secure passage through high-density detection.
Novel Appearance with High-tech Design
Both external plastic parts and internal components are made from high-quality materials and exquisite craftsmanship, ensuring safety and durability.
Equipped with a display screen, infrared detector, IC/ID card reader, QR code scanner, passage indicator lights (red, green), and other functions.
Power-off Gate Opening, Power-on Gate Closing
The device features an automatic reset function: when powered on, the gate automatically closes, and when powered off, the gate opens automatically. During the flap gate reset process, if an infrared sensor detects a person in the passage, the gate will automatically return to the open state.
