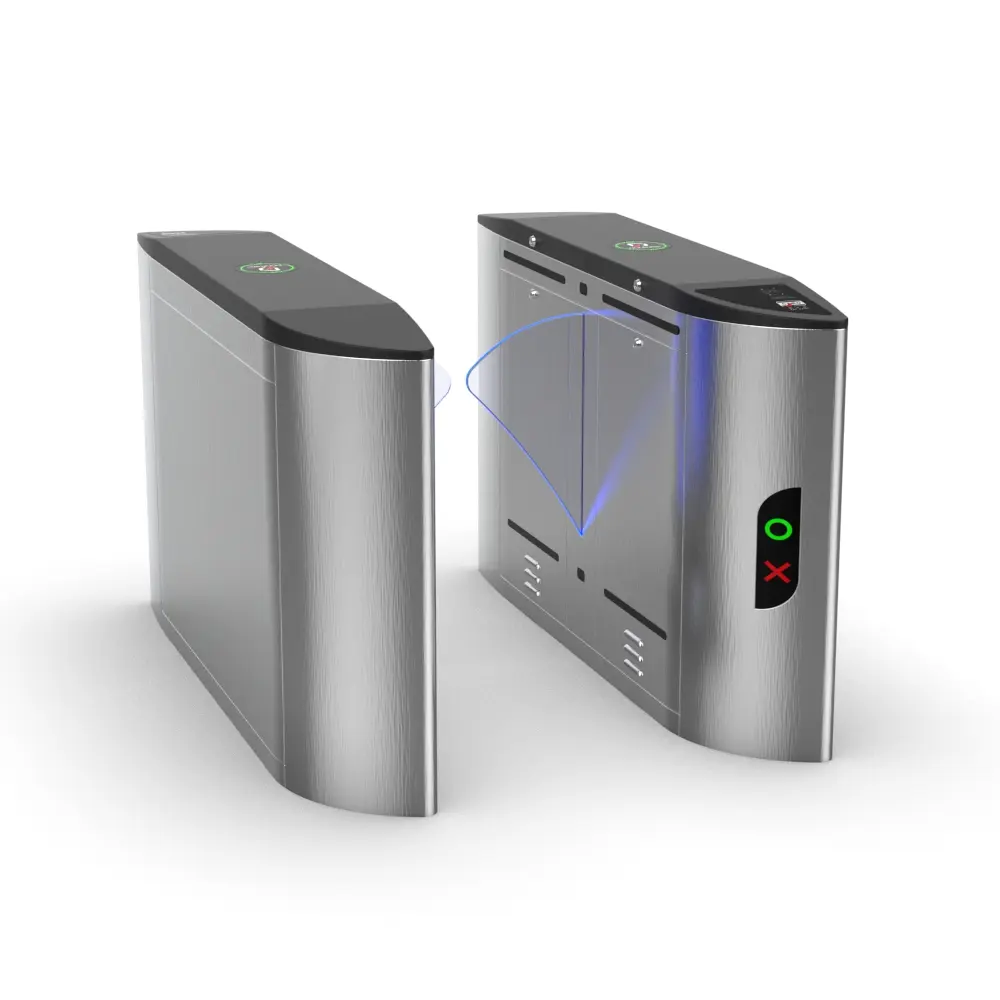

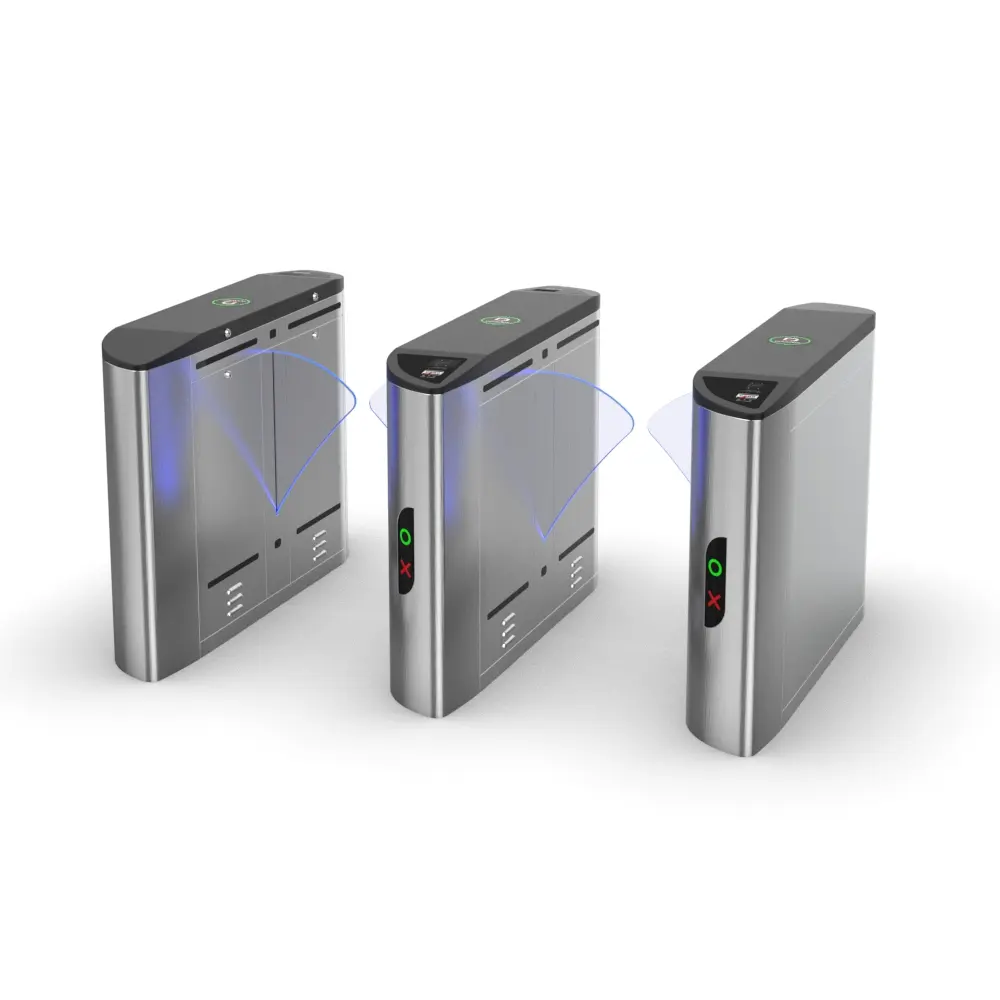

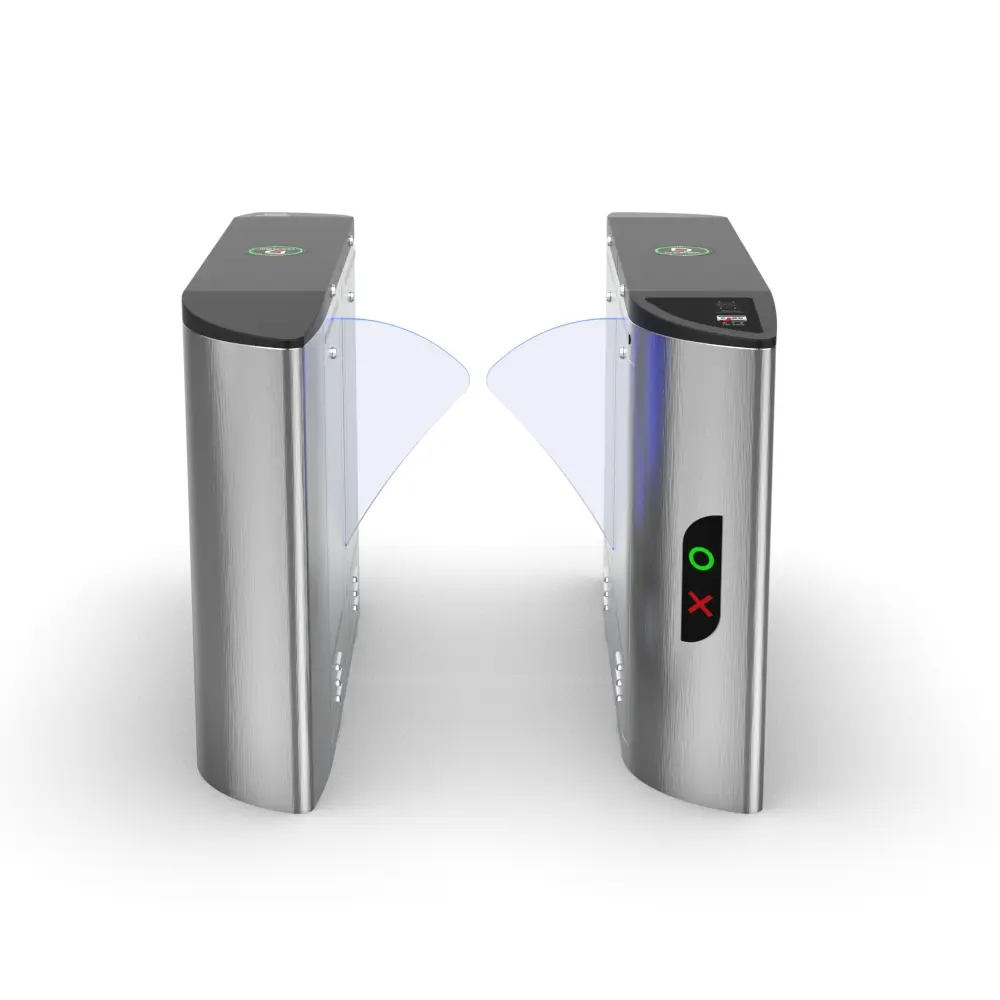

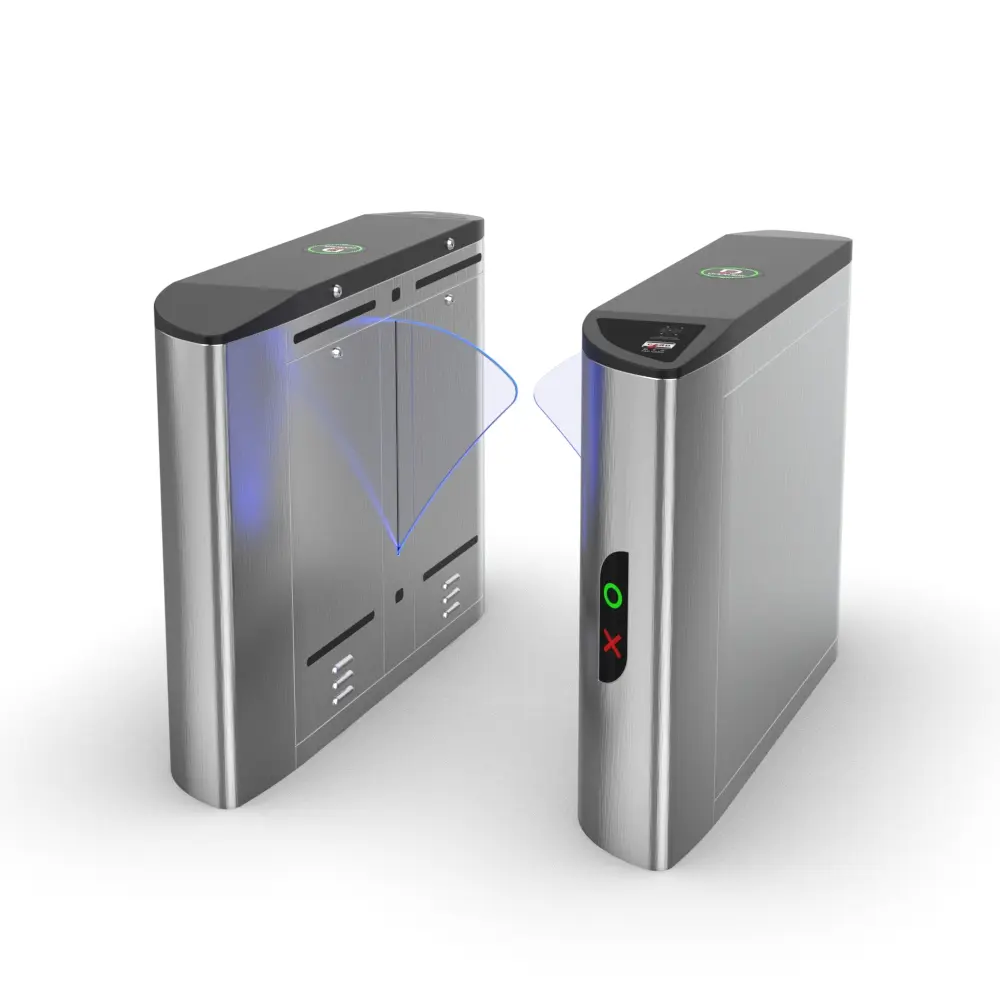

The China JJR Flap Barrier Gate FB-2 features a novel design with a high-tech aesthetic. Both the external components and internal parts are made of premium materials, utilizing exquisite craftsmanship to ensure durability and safety. Equipped with a powerful capacitor design, it automatically opens during power outages. The gate resets automatically upon restoring power. During its resetting process, if infrared sensors detect someone in the passage, the gate will reopen automatically.
Flap Barrier Gate Technical Specifications
1. Dimensions: 1600280980mm
2. Material:
- Top Cover: Cold-rolled steel, 2.0mm thickness, with painted finish.
- Housing: 304 stainless steel, brushed finish.
3. Passage Width: ≤550mm (includes 50mm spacing), made of acrylic material.
4. Motor Input: DC brushless motor.
- Features: Low power consumption, low noise, long lifespan, stable operation, supports over 5 million passes.
5. Drive Method: Digital.
6. Operating Temperature: -20°C to 70°C.
7. Relative Humidity: ≤95%, non-condensing.
8. Throughput Speed: 30-40 people/minute.
9. Communication Interfaces: Dry contact, RS485.
10. Waterproof Rating: IP24.
11. Device Lifespan: Not less than 5 million cycles.
12. Installation Environment: Indoor installation (outdoor requires a canopy).
Flap Barrier Gate Functional Features
Core Functions:
1. Automatic Reset: Gate resets automatically if passage is not completed within a set time.
2. Unlock During Power Failure: Automatically opens in case of a power outage with alarm prompts.
3. Self-Check on Power-Up: Automatically closes upon restoring power with alarm prompts.
4. Anti-Collision and Anti-Clamping: Triple protection includes infrared anti-clamping, logic anti-clamping, and current detection, ensuring pedestrian safety.
5. Alarm Function: Alerts for unauthorized access, tailgating, or reverse passage.
6. Fire Safety Integration: Automatically opens gates during fire emergencies.
Advanced Features:
1. Multi-Layer Anti-Clamping Detection:
- Infrared detection.
- Logic-based judgment.
- Current detection protection.
2. Anti-Tailgating: Multi-group infrared sensors prevent tailgating, ensuring one card per person.
3. Anti-Reverse Passage: Accurate infrared calculations block reverse entry with sound and light alarms.
Flap Barrier Gate Identification and Passage Modes
1. Card Swiping: Supports IC/ID card, unidirectional or bidirectional operation.
2. QR Code Recognition: Scans smartphone QR codes for access.
3. Facial Recognition: Equipped with dynamic anti-spoofing dual-camera system.
4. ID Verification: Matches face with ID card for enhanced security.
Flap Barrier Gate Material and Design
1. High-Quality Materials:
- Housing: 304 stainless steel with brushed finish.
- Top Cover: Painted finish, glossy and durable.
2. Durability:
- Corrosion-resistant, wear-resistant, heat-resistant, and oxidation-proof.
Flap Barrier Gate Lighting and Display
1. LED Lighting Decoration:
- Blue light indicates normal operation.
- Red light indicates alarm status.
2. Traffic Indicator: Red and green lights indicate the current state (green for passage, red for stop).
Flap Barrier Gate Special Features
1. Infrared Detectors:
- Next-generation infrared detection ensures ultra-precise safety monitoring during passage.
2. Battery-Free Design:
- Equipped with an ultra-powerful capacitor system, eliminating traditional batteries for eco-friendly and reliable performance.
