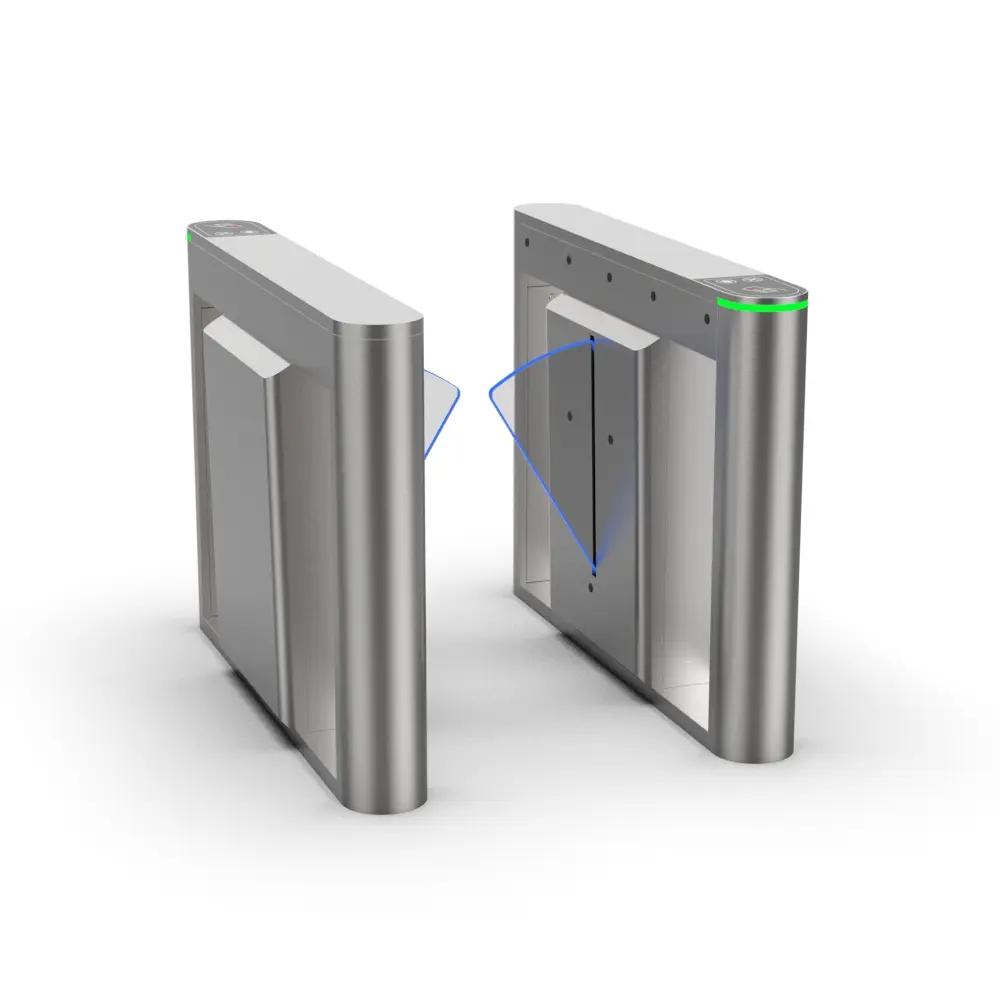

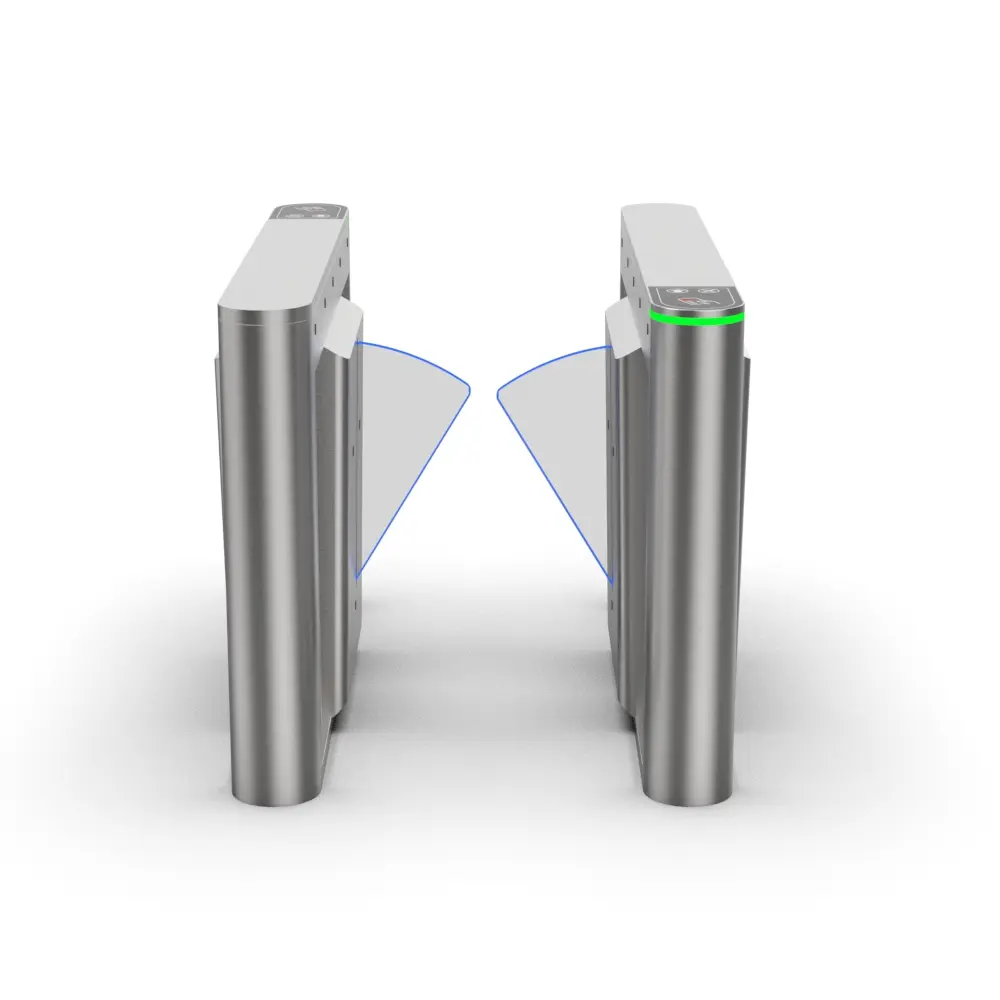

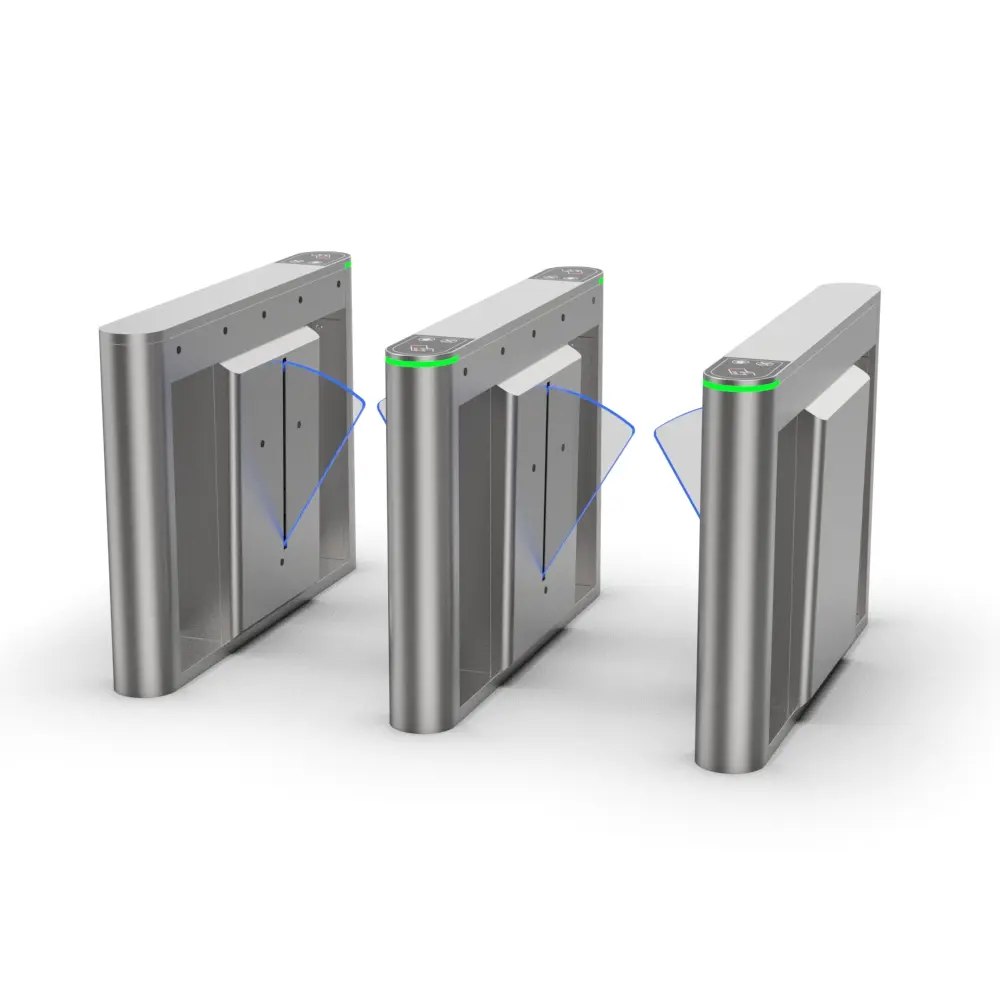

The smart swing barrier visitor channel device features advanced technical specifications and diversified functions, enabling efficient and secure personnel passage management. The swing barrier integrates multiple verification methods and comprehensive safety mechanisms, offering convenient and efficient passage experiences while ensuring safety and reliability. It is an ideal choice for modern venue management.
Technical Specifications
- Dimensions: 1400×280×1000mm
- Material: Body made of SUS304 brushed stainless steel; top cover thickness 1.2mm, body thickness 1.0mm
- Channel Width: <550mm (including 50mm spacing), acrylic material
- Motor Input: DC brushless motor
- Drive Mode: Digital mode
- Operating Temperature: -20°C~+70°C
- Relative Humidity: <95%, non-condensing
- Passage Speed: 30-40 people per minute
- Signal Input: Dry contact, RS485
- Infrared Sensors: 5~7 pairs of infrared sensors (5 pairs standard)
- Protection Level: IP54
- Service Life: At least 5 million cycles
- Application Environment: Semi-outdoor
Swing Barrier Visitor Channel Applications
The swing barrier supports multiple visitor verification methods, including QR codes, card swiping, and facial recognition. Specific application scenarios include:
1. Desktop Visitor System: Suitable for visitor registration scenarios at desks, paired with dedicated devices for convenient operation.
2. Stand-alone Visitor System: Ideal for locations with high traffic, offering fast registration and identity verification.
3. Mobile Self-service Registration: Visitors can register information via mobile devices, providing flexibility and adaptability for diverse needs.
Multiple Verification Passage Methods
The smart swing barrier supports the following verification methods, ensuring efficient and secure passage:
1. Card Swiping: Supports IC/ID cards for single or dual-direction swiping.
2. QR Code Recognition: Enables quick passage by scanning mobile QR codes.
3. Facial Recognition: Utilizes dynamic dual-mode facial recognition for fast identity verification.
4. Identity Matching: Combines facial recognition with ID card verification for higher precision and security.
Safety Features
1. Anti-tailgating: Multi-group infrared beams monitor personnel passage, ensuring one card per person and issuing alarms for tailgating.
2. Anti-reverse Passage: Infrared monitoring prevents reverse passage, automatically locking the channel and triggering an alarm.
3. Multi-level Anti-clamping and Anti-collision:
- Infrared anti-clamping and anti-collision
- Logical anti-clamping and anti-collision during passage
- Current-detection-based anti-clamping and anti-collision
Additional Features
1. Automatic Reset: If no passage occurs within the preset time, the swing barrier gate automatically resets.
2. Power-on Self-check: The device automatically detects faults upon power-on and issues alerts.
3. Alarm System: Provides alerts for unauthorized access, reverse passage, and tailgating.
4. Power-failure Unlocking: Automatically unlocks the gate during power failure, ensuring emergency evacuation.
5. Anti-collision and Anti-clamping: Multi-level protection prevents accidents involving people or objects.
6. Fire Alarm Integration: When connected to a fire alarm system, the swing barrier opens automatically upon fire triggers.
Materials and Craftsmanship
The smart swing barrier is made of SUS304 brushed stainless steel, offering excellent corrosion resistance, wear resistance, high-temperature tolerance, and oxidation resistance. The top cover and body are 1.2mm and 1.0mm thick, respectively, ensuring durability.
Design and Details
- Infrared Sensors: Employ advanced infrared detection technology for intelligent passage monitoring with ultra-high density, ensuring safe passage.
- Ambient Lighting: Features red, green, and blue indicator lights to display passage status clearly.
- Passage Indicators and Channel Lights: Equipped with LED indicators and channel lights to optimize user experience.
This smart swing barrier visitor channel device combines precision craftsmanship with efficient functionality, providing a safe and effective solution for passage management across various scenarios.
