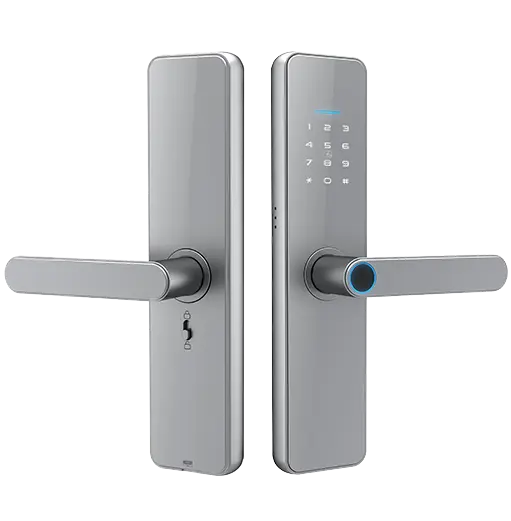

Fingerprint Smart Door Lock Features
Convenient Grip-to-Open Design
- Tempered glass panel with a minimalist style.
- Aluminum alloy die-cast front and rear panels with spray coating.
- International Grade C lock cylinder with strong anti-tampering performance and high security.
Advanced Fingerprint Recognition
- Financial-grade fingerprint sensor for smoother recognition.
- Modular design supports various networking modules (Bluetooth, WiFi, Zigbee).
- Suitable for multiple scenarios, including Tuya IoT, smart homes, and apartment projects.
Fingerprint Smart Door Lock Technical Specifications
- Supported Phone Systems: Android 4.3 / iOS 7.0 or above.
- Power Supply: 4 x AAA batteries.
- Emergency Power Supply: 5V (Micro USB).
- Low Battery Alert Voltage: 4.8V.
- Voltage Range: 4.5–6V.
- Standby Current: < 50µA.
- Working Current: < 250mA.
- Unlocking Time: ≈1.5 seconds.
- Keypad: Standard 12-key.
- Password Capacity: 100.
- Password Length: 6–12 digits.
- Networking Options: WiFi/Bluetooth/Zigbee.
- Door Types: Wooden doors / Security doors.
- Door Thickness (mm): 38–120 mm.
- Card Type: MIFARE M1 card.
- IC Card Capacity: 291 cards.
- Unlock Methods: App, password, fingerprint, IC card, mechanical key.
- Fingerprint Sensor Type: Semiconductor fingerprint sensor.
- Fingerprint Capacity: 8 groups.
- False Acceptance Rate (FAR): < 0.001%.
- False Rejection Rate (FRR): < 1.0%.
- Operating Temperature: -10–60℃.
- Operating Humidity: 45–90% RH.
- Storage Temperature: -30–70℃.
- Storage Humidity: 45–90% RH.
- Lock Body Model: 5050 mechanical lock body.
- Data Storage: Online storage.
- Alarm Functions: Tamper alarm / Low battery alarm / System lock alarm.
Advantages of the Fingerprint Smart Lock with Handle
Elegant Design
- Grip-to-open mechanism with tempered glass panel and minimalist aesthetic.
- Aluminum alloy die-cast panels with spray finish for durability and style.
Cutting-Edge Technology
8 Unlocking Methods:
- WiFi
- Bluetooth
- App
- Fingerprint
- Password
- Magnetic card
- Key
- Combination unlock
Smart App Integration
One-Stop Remote Management
- Unlock remotely, push notifications, view unlock records, and link smart scenarios through the app.
- App Features:
- Remote unlocking.
- Intelligent scene linkage.
- Notifications.
- Access logs.
Temporary Password Sharing
Share temporary passwords remotely to let guests in conveniently.
- One-Time Password: Ideal for quick guest access.
- Cyclic Password: Suitable for recurring visits.
- Permanent Password: Supports 32-bit anti-peep passwords for added security.
Remote Insights with the App
Stay informed about home security anytime, anywhere.
- Smart Lock: Manage lock status and battery notifications.
- User Management: Add, remove, and modify user permissions.
- Unlock Logs: View unlocking history.
Low Power Consumption
- Powered by 4 AAA alkaline batteries.
- Supports over 10 unlocks per day for more than a year.
- Low voltage alert for timely battery replacement.
