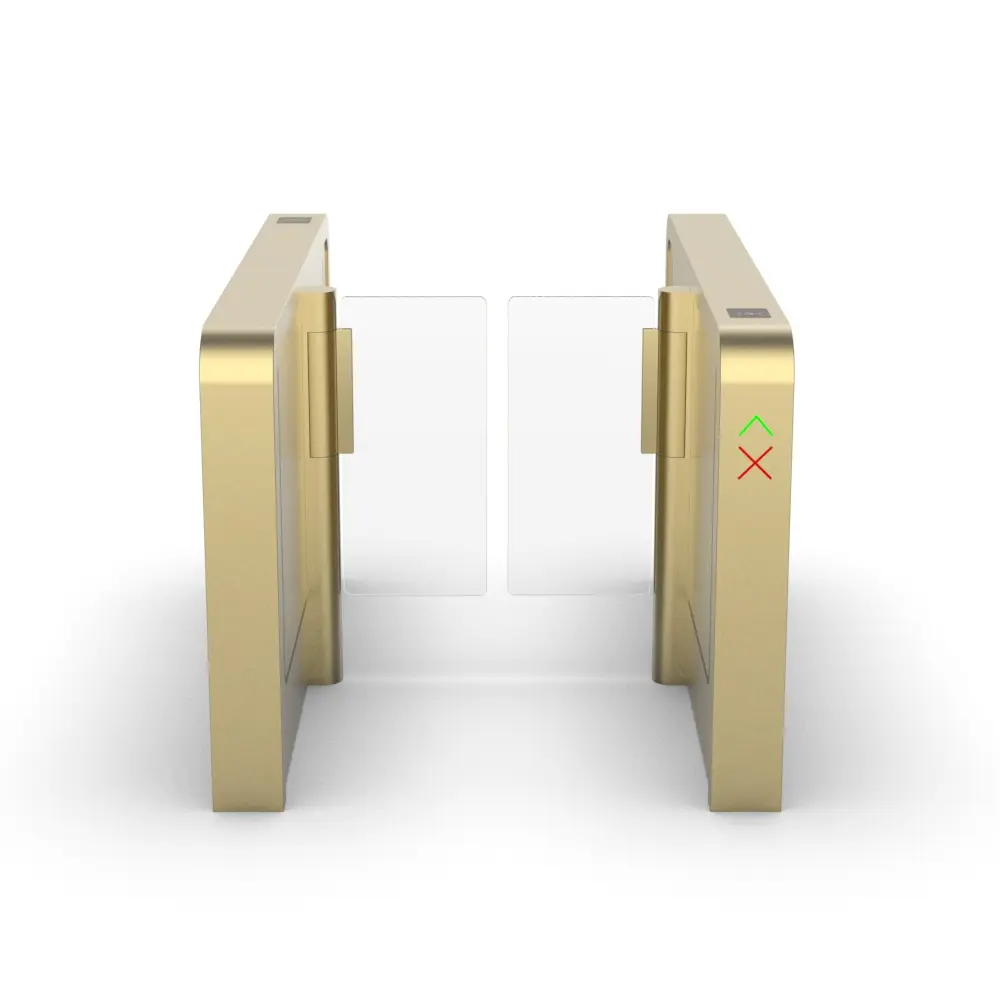

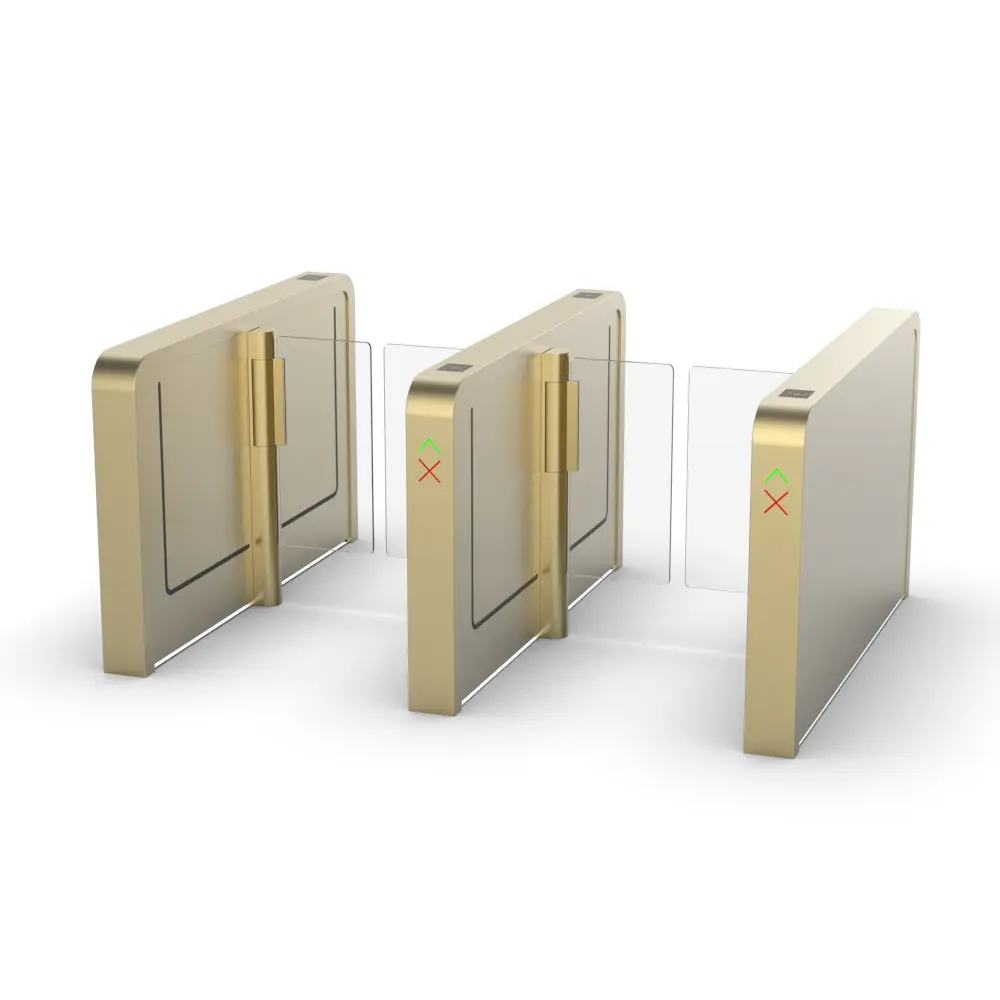

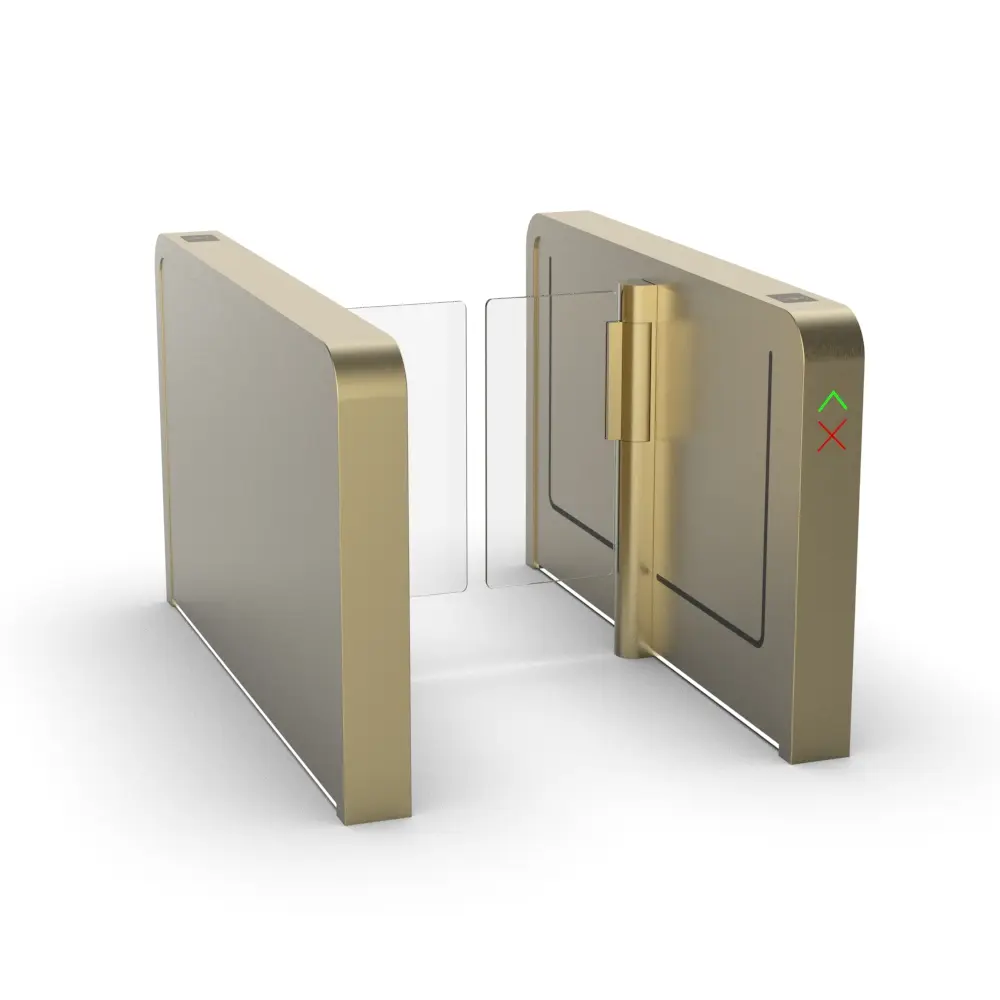

The SG-1 Speed Gate, developed by China JJR, is available at low-cost wholesale. Its stainless steel frame is integrally formed with no seams, featuring a uniform brushed surface. Equipped with 14 pairs of infrared sensors, it ensures safer passage. Swing gates are installed with sensors to prevent impact injuries to passengers. Floating lights at the base guide passengers for safe and convenient passage.
Customizable Speed Gate Features
- Certain functions can be customized to suit various scenarios.
- Options include tempered glass swing gates and custom overall color design.
High-Performance Chip
- Utilizes high-performance, high-reliability processor chips for fast and stable algorithm operation.
- Key performance attributes:
- Fast motor operation
- Smooth operation curve
- Accurate positioning
- Stable start/stop
- Precise anti-pinch and excellent synchronization
- Supports rapid data collection and feedback for real-time equipment monitoring.
AI Intelligent Algorithms
- Independently developed FOC servo control and trapezoidal curve trajectory planning algorithms for rapid and precise gate operation.
- Core motor employs three-loop PID servo control algorithm for real-time detection of:
- Current (torque)
- Speed
- Position
Powerful Core Features
- Stability: ≥20 million passages
- Speed: Swing gate operation speed ≥ 0.3 seconds
- Quiet Operation: ≤55 dB
- Precision: Operational accuracy ≤ 0.2 degrees
Multiple Access Verification Methods
1. Card Swipe Access: Supports IC/ID cards for single or dual-direction access.
2. QR Code Recognition: Mobile phone scanning for quick and convenient access.
3. ID + Face Matching: Identity card and facial recognition for enhanced security.
4. Facial Recognition: Dynamic dual-camera anti-spoofing for fast access.
5. Palm Vein Recognition: Infrared detection of subcutaneous vein patterns for high security.
Additional Features of the Speed Gate
- Smooth swing gate operation with responsive performance
- Emergency unlock via button during power failure
- Reverse connection, short circuit, and overcurrent protection
- Anti-collision and anti-pinch mechanisms
- Alarm functions for intrusion and tailgating prevention
- Power-on self-test and auto-close function
Technical Specifications
- Channel Width: ≤900mm
- Drive Motor: Servo motor DC24V
- Passage Speed: 25-35 people/minute
- Relative Humidity: ≤95% (non-condensing)
- Operating Temperature: -20℃~70℃ (optional electronic temperature compensator for extreme low temperatures)
- Water and Dust Resistance: IP42 or above
- Infrared Sensors: 14 pairs
- Cabinet Dimensions: 1600×140×961mm
- Service Life: At least 20 million cycles
China-based manufacturer JJR offers wholesale customization for Speed Gates, with its factory located in Shenzhen, Guangdong. Feel free to contact us for inquiries and purchases.
