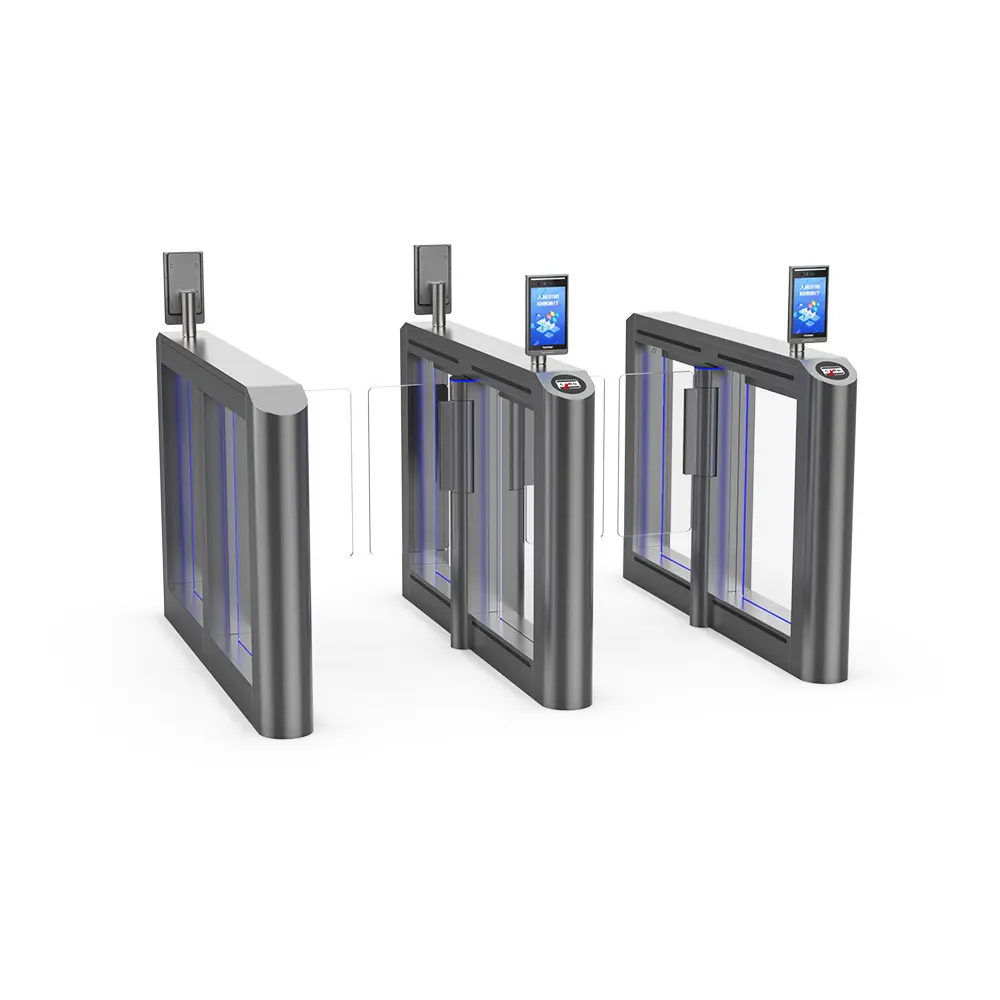

China JJR offers high-performance, cost-effective Speed Gate products. We highly recommend the SG-2 model, featuring a sturdy build with a sleek, curved design. Perfect for mid to high-end indoor projects, the SG-2 comes with self-diagnostic and alarm functions for easy maintenance and operation.
Product Features
Modern Appearance & High-Tech Design
- Premium materials for both external and internal components ensure safety and durability.
- SUS304 Stainless Steel construction with brushed finish:
- Top cover thickness: 1.2mm
- Body thickness: 1.0mm
Core Technologies & Functions
Infrared Detection Technology
- Next-generation intelligent sensors with high-density detection for safe passage.
Servo Motor Advantages
- Adopts sine wave control technology for low power consumption, minimal noise, and long service life.
- Stable operation, supporting ≥10 million passages.
Safety Features
1. Anti-Tailgating:
Multi-beam infrared sensors ensure one card per person, precisely monitoring passage.
2. Anti-Reverse:
Detects and alerts tailgating or reverse movements, automatically locking the passage.
3. Triple Anti-Clamp & Anti-Collision Mechanism:
- Infrared Anti-Clamp
- Logic Monitoring Anti-Clamp
- Current Detection Anti-Clamp
Multiple Verification Methods
- Card Authentication: Compatible with IC/ID cards, supporting single or dual-direction card swiping.
- QR Code Scanning: Allows smartphone QR code passage for convenience.
- Facial Recognition: Dynamic dual-camera anti-spoofing technology for fast and secure verification.
- Identity Verification: Combines facial recognition with ID card authentication for enhanced security.
Additional Features
- Automatic Reset: Gate resets if no passage occurs within a specified time.
- Power-On Self-Test: Automatically locks the gate and triggers an alarm.
- Intrusion Alerts: Alarms for unauthorized access, reverse passage, tailgating, or prolonged access time.
- Power-Off Unlocking: Automatically unlocks the gate in case of power failure, with alarm.
- Fire Safety Integration: Opens gates automatically during emergency fire alarms.
Technical Specifications
- Dimensions: 1600×180×1020 mm
- Material: SUS304 Stainless Steel (brushed finish), 1.5mm thick housing, 2.0mm top cover
- Passage Width: 550~1100 mm (includes 50mm intervals), acrylic material
- Motor Input: Servo Motor LDC24V
- Drive Method: Digital control
- Operating Temperature: -20℃~+70℃
- Humidity: ≤95%, non-condensing
- Passage Speed: 25~35 persons/min
- Infrared Beams: 8 pairs
- Protection: IP42
- Service Life: ≥10 million operations
- Usage: Indoor use only
Application Scenarios:
Ideal for visitor passageways, supporting QR codes, card swiping, facial recognition, and more.
China JJR is committed to providing high-value Speed Gate solutions. Contact us for inquiries and orders!
