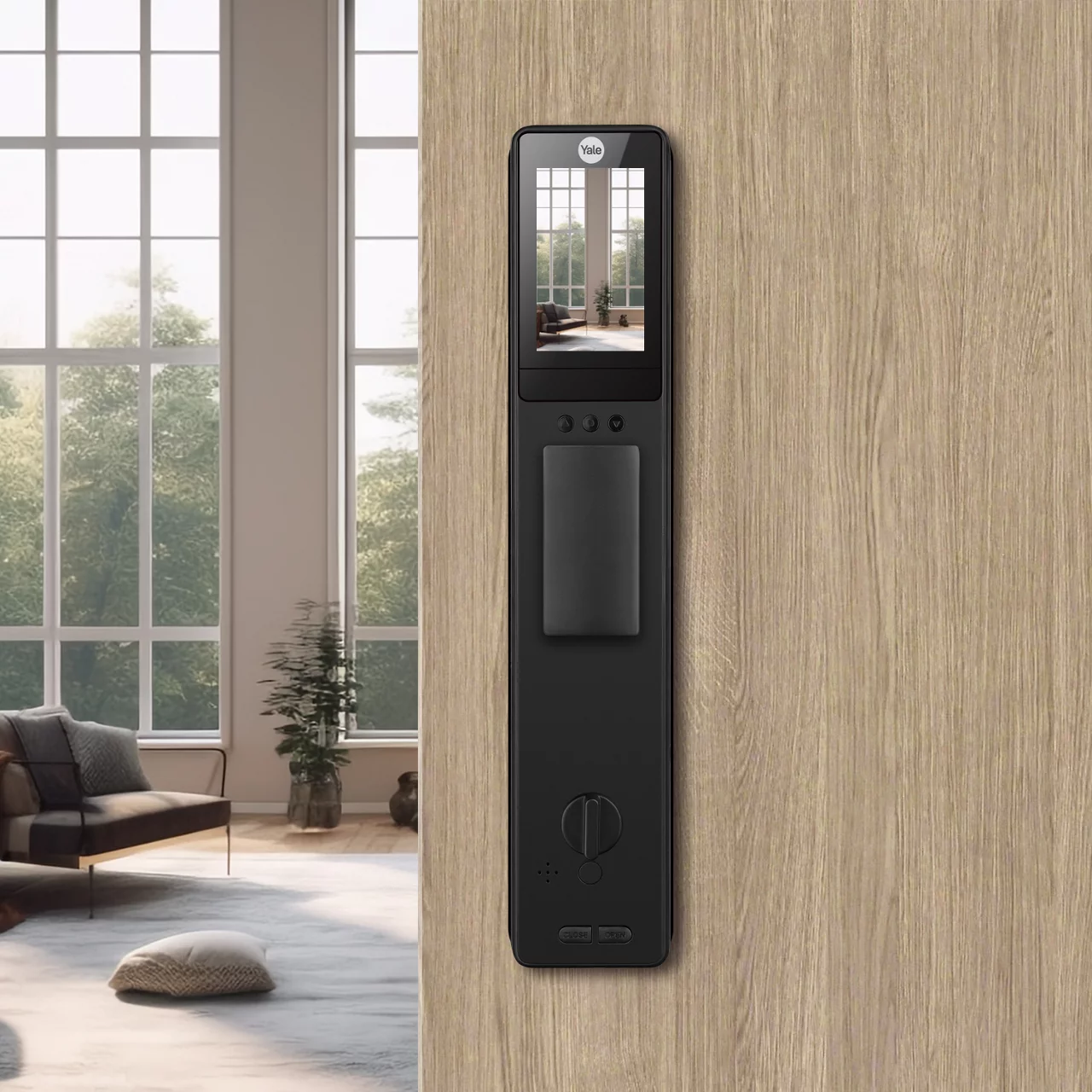

JJR, a Chinese manufacturer, offers low-cost wholesale smart commercial door locks. The Yale-5 fully automatic smart door lock is an advanced model that features multiple unlocking methods such as fingerprint, password, card, and mechanical key, providing users with a convenient and secure door entry experience. It uses a semiconductor biometric fingerprint scanner to effectively prevent fake fingers and cloned fingerprints from unlocking the door. The lock is equipped with a C-level lock core for enhanced resistance to technical bypassing. It also includes anti-tamper alarms, ensuring home security, and supports system self-check, USB emergency power, voice navigation, a built-in doorbell, and an indoor emergency quick-release handle, among other features.
Where are smart commercial door locks suitable?
Smart door locks are suitable for: residential buildings, hotels, apartments, offices, commercial buildings, smart homes, access control systems, resorts, rental properties, warehouses, hospitals.
Smart Commercial Door Lock Details
1. Technical Parameters
- Capacity: 100 user groups (including 1 password/1 card/1 fingerprint).
- Fingerprint: Fingerprint detection time <1s, false rejection rate <0.001%, false acceptance rate <1%.
- Password: Normal password length 6-9 digits, fake password up to 12 digits.
- Card: Card type 13.56MHz, compliant with ISO/IEC14443 (e.g., M1 card).
- Voice: Speaker power 0.5W.
- Electrical Characteristics: Operates on 8 AA dry batteries, with static current <60uA, max operating current 350mA (excluding motor), max motor current 6.5A, motor drive voltage 5V-8.4V, low battery alarm below 6.75V.
- Operating Environment: Working temperature -20°C to 55°C, humidity <85%RH (non-condensing).
2. Smart Lock Diagram

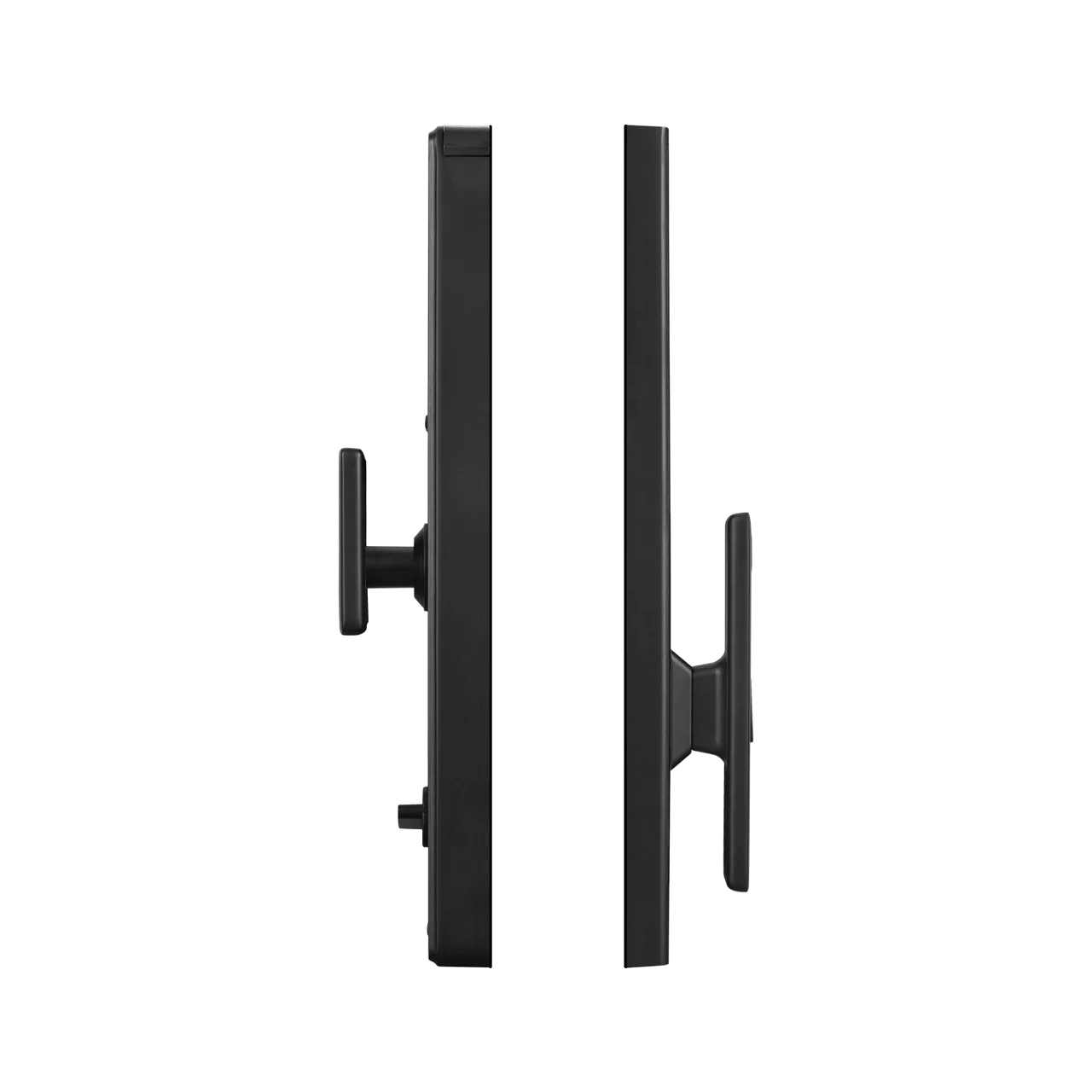

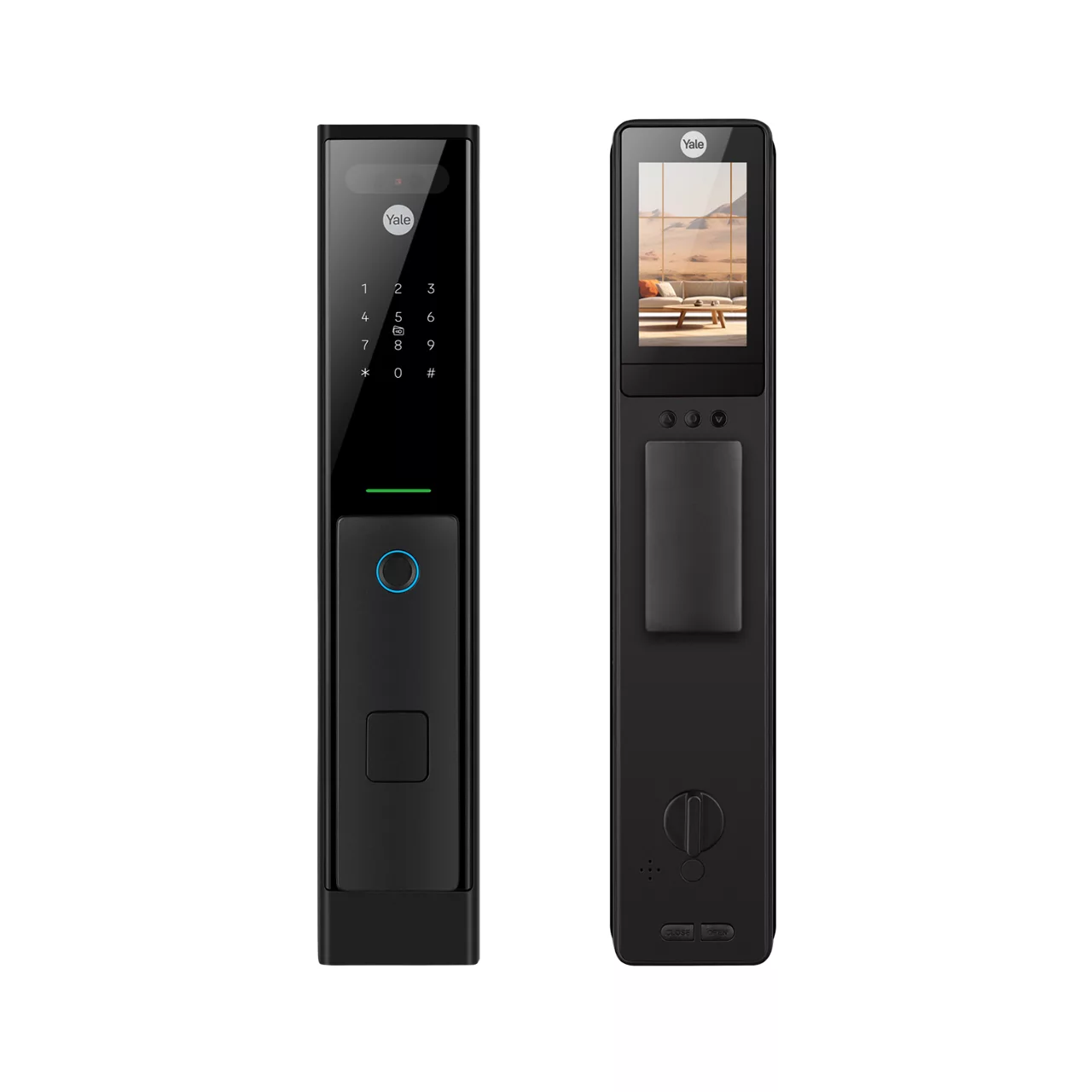

- Includes a visual screen, button/card swipe area, breathing indicator light, fingerprint scanner, rear quick-release handle, lock/unlock knob, front pull handle, unlock key, lock key, emergency power interface, etc. The default administrator password is “123456”, which becomes invalid after registering the admin user. Afterward, access to the system menu requires verification through the registered admin fingerprint or password.
Smart Commercial Door Lock Features
1. Five-in-one automatic unlocking method for convenience and speed.
2. Semiconductor biometric technology for security and reliability.
3. Supports remote control to unlock doors.
4. C-class lock core for high-level security.
5. Includes various safety alarm functions, such as anti-tamper alarms, fingerprint error alarms, and system lock alarms.
6. USB emergency power to prevent lockout due to low battery.
7. Voice navigation for simple and clear operation.
8. Built-in doorbell and quick-release emergency handle, combining convenience and safety.
Smart Commercial Door Lock Functions
1. User Management
- User permissions are divided into Administrator users (9 users, ID001 - ID009) and regular users (291 users, ID010 - ID300). Administrators can configure the system, while regular users can only verify to unlock the door. User information includes fingerprint, password, and access cards, with passwords being non-repetitive. Administrators can create and delete user information but cannot delete the currently logged-in administrator’s details.
2. Unlock Methods
- Password Unlock: Password length between 6-9 digits, supporting fake passwords (up to 12 digits). After 5 incorrect attempts, the lock will be disabled for 180 seconds.
- Fingerprint Unlock: Touch the fingerprint scanner to unlock. If more than 5 incorrect attempts are made, an alarm is triggered.
- Card Unlock: Use a registered NFC card. The response time is less than 1 second, and the card identifies the user ID and reports it.
- Other Lock/Unlock Methods: The rear lock has an independent quick-lock/unlock key; the front panel can be locked by touching a key while in sleep mode; the system automatically detects key electronic components upon power-up and provides voice navigation in the menu.
3. System Settings
- Language & Volume Settings: Switch between Chinese/English, adjust the voice volume (High, Medium, Low, Mute). In mute mode, the doorbell is disabled.
- Time Settings: Set year/month/day/hour/minute, with the time format being “2022-01-01 09:09”.
- System Initialization: Can be performed by long-pressing the lock/unlock button for 5 seconds, either in the system settings or during power-up. This will delete all user information and requires confirmation.
4. Record Query: You can query door opening records, stored information, and version number. Records are displayed in time order from new to old, with up to 512 entries, including door unlocking records (page up/down with 2, 8 keys) and registration records (page up/down with 2, 8 keys).
5. Advanced Settings (Administrator Permission)
- Unlock Function Settings: Includes always-open mode (open without verification), single unlock mode (fingerprint, password, or card), and combined unlock mode (any two combinations of fingerprint, password, or card).
- Anti-Tamper Switch: Can be turned on or off. Default is on.
Smart Commercial Door Lock Operations
1. System Wake-up: Press any key on the touch panel or use the fingerprint to wake up the lock. When in menu settings, the wake-up time is 15 seconds after the last touch or entering standby mode. If more than 5 incorrect inputs occur, the electronic part will lock for 180 seconds. After unlocking, the door automatically locks after 5 seconds.
2. Unlock Verification: Directly swipe the card/input the password/fingerprint to unlock without entering the system menu. Administrators must press the + # keys to verify their fingerprint/password before entering the system menu.
3. User Management Menu: After verifying administrator identity, add or delete users' fingerprints, passwords, or cards as prompted.
4. Register Administrator/Normal User: Enter management mode by pressing the + # key and follow prompts to input information such as fingerprint, ID, or password. After successful input, registration is complete.
5. Delete User: Press + # to verify administrator permissions and enter the user ID to delete the user.
6. Version Number Query (Default Hidden Menu): Quick query of the lock version by pressing 666 + #.
Smart Commercial Door Lock Maintenance
1. Daily Maintenance: Regularly wipe the surface of the door lock with a soft cloth. Avoid using water, alcohol, or acidic chemicals for cleaning. Periodically, professional personnel should lubricate moving parts or replace heavily worn components.
2. USB Emergency Power Use: When the lock cannot be opened due to low voltage, connect an external emergency power source. After unlocking, immediately disconnect and charge the battery. (Emergency power should only be used in emergencies, and the battery should not be used if it is already charged.)
3. Handling Door Frame Deformation: If the door frame is deformed and the lock tongue cannot function properly, adjust the position of the door strike plate.
