Smart Card Door Lock Features:
- High-Capacity Storage Chip: Stores up to 800 unlocking records.
- Durable ABS Sensor Cover: Offers excellent toughness, strong signal reception, and enhanced card sensing sensitivity.
- Stainless Steel Latch: Provides outstanding impact resistance, corrosion resistance, and wear durability.
- Auto Lock Protection: Locks automatically for 3 minutes after 5 consecutive incorrect card swipes.
- Concealed Mechanical Lock Core: Prevents malicious tampering and enhances security.
- Imported Motor: Delivers rapid response, quick reset, high sensitivity, and long service life.
- Auto Alarm: Alerts if the latch is not fully engaged in a locked position.
- Safety Latch Design: Prevents damage to the anti-pry latch if the door is accidentally closed without proper engagement.
Technical Specifications of the Smart Card Door Lock
- Type: Wireless RFID Card Lock
- Electronic Key: Mifare 1 S50 Card
- International Standard: ISO14443-A
- Operating Voltage: 4 AA batteries (4.2-6.5V)
- Power Consumption: ≤200mA (duration ≤0.2 seconds)
- Battery Life: ≥10,000 unlocks
- Static Power Consumption: ≤40μA
- Low-Voltage Alarm: 4.4V (±0.2V)
- Operating Temperature: -20℃ to 55℃
- Storage Temperature: -30℃ to 70℃
- Operating Humidity: 15%RH to 93%RH
- Reliability: MTBF ≥30,000 operations
- Mechanical Life: ≥100,000 normal unlocks

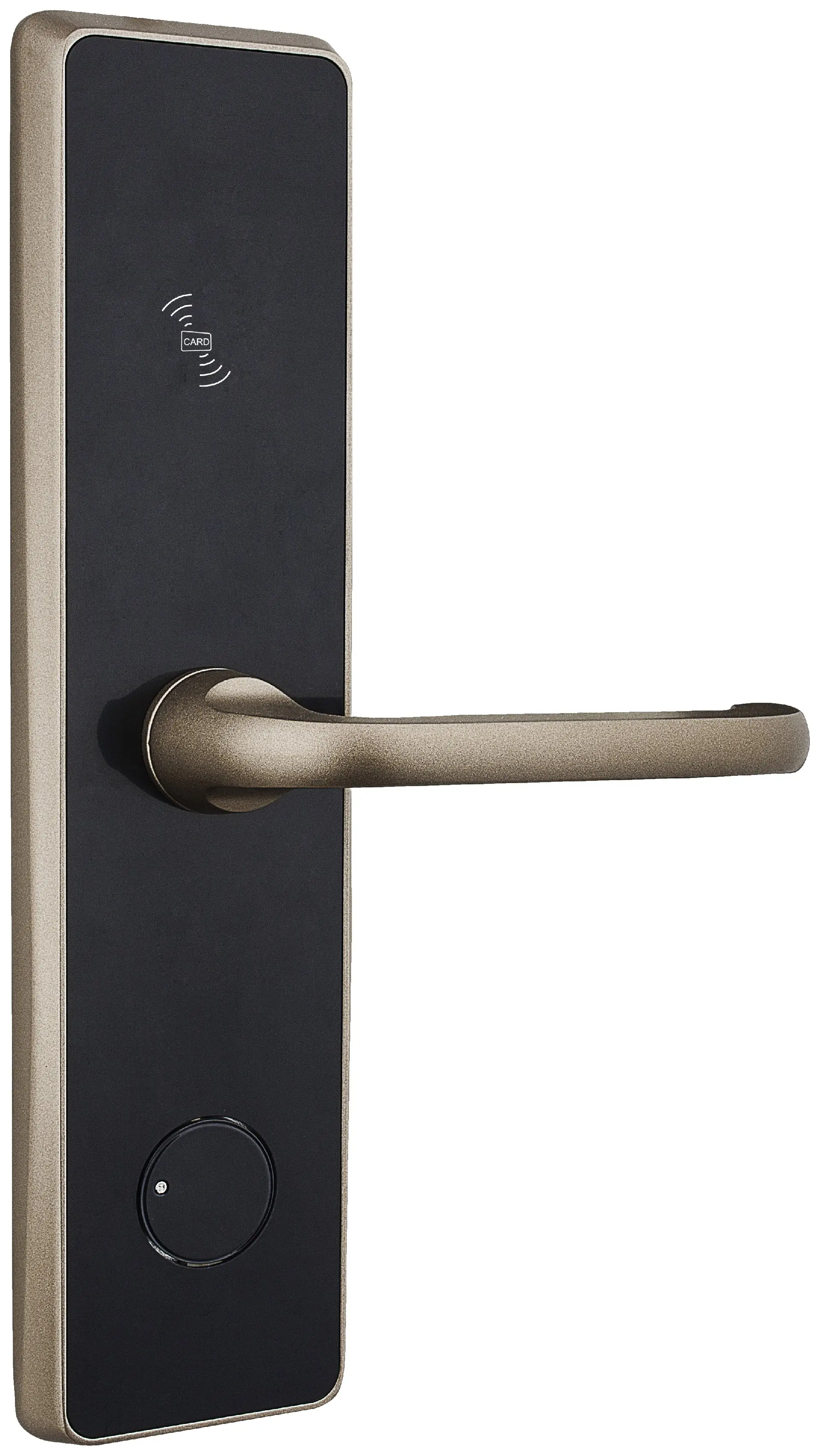

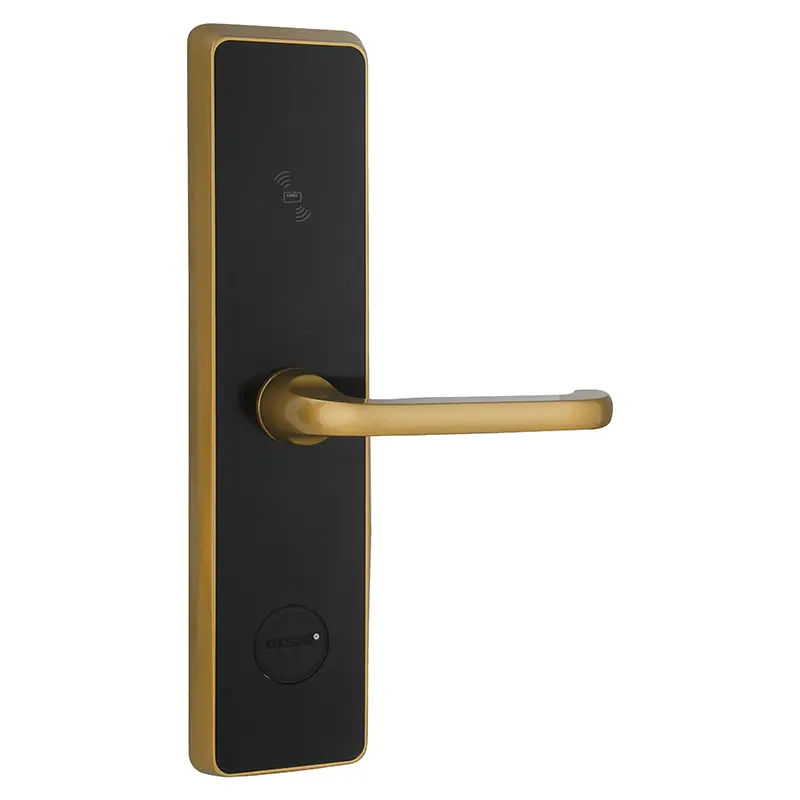

Smart Hotel Door Lock
- Stylish Design
- High-Reliability Lock Body
- Triple Protection Circuit Board Design
- Multiple Management Authority Levels
- Checkable Door Lock Records
Key Advantages of the Smart Card Door Lock
- Card-Based Unlocking
- Mechanical Key Option
- Timed Access Function
- Low Battery Alert
- Emergency Power Interface
- 8# Compact Lock Body
Smart Card Door Lock Features
- Smart IC Card: Enhanced encryption for secure access.
- Triple Protection: Imported card reader chip ensures high safety, reliability, and sensitivity for an excellent user experience.
- Ultra-Low Power Consumption: ≤40μA ensures battery life exceeds one year. Low-voltage alerts notify for timely battery replacement.
- Seamless Hotel Management Integration: Compatible door lock management software with intuitive interface and permission controls. Software maintains operation logs to prevent unauthorized room access.
- Anti-Static and Anti-EMI: Resists static electricity up to 15,000V and electromagnetic interference, safeguarding against Tesla coil devices and similar threats.
- High-Strength Alloy Lock Body: Innovative no-load motor and safety latch design. Certified with CE after 200,000+ fault-free operations.
- Concealed Keyhole Design: Supports USB emergency power unlocking. Hidden keyhole enhances security and maintains aesthetic appeal.
Comprehensive Security Technology
Integrates cutting-edge anti-theft and anti-tampering technologies to protect every traveler with robust security solutions.
