The Intelligent Dash Cam V8N is a 4G dash cam that integrates high-definition video recording functionality. This device features a front and rear dual-camera integrated design, providing comprehensive real-time monitoring of both the interior and exterior environments of the vehicle. It supports built-in active safety algorithms that can detect dangerous driving events and unsafe driving behaviors. The system provides real-time voice alerts to the driver to avoid collisions and accidents and reports incidents to the customer management platform, facilitating the statistical analysis of driver behavior. It supports uploading real-time vehicle location information and historical trajectories to the customer management platform, offering high-definition real-time video and historical video viewing, making management more convenient and efficient.
Dash Camera Features
Built-in 4G communication module, Wi-Fi module, GNSS module.
Integrated starlight-grade wide dynamic front camera (HFOV: 106°; DFOV: 139°), supporting 1080P HD recording.
Integrated 2-megapixel IR-CUT infrared ultra-wide-angle interior camera (HFOV: 152°; DFOV: 180°), supporting 720P recording.
Both built-in dual cameras offer adjustable angles, providing a more flexible and versatile user experience.
Supports up to 4-channel (including 2 channels from the main unit) video recording.

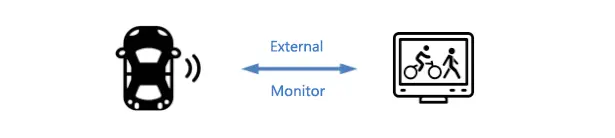

Supports external monitors for real-time video content viewing.
Dual TF card support, with each TF card supporting up to 2TB capacity.
Supports ADAS functions: lane departure warning (LDW), headway monitoring and warning (HMW), forward collision warning (FCW), pedestrian collision warning (PCW).
Supports DMS functionality, detecting unsafe driving behaviors.
Facial recognition support for effective driver supervision.
Extended camera supports BSD functionality, monitoring pedestrians or non-motorized vehicles within the driver's blind spot.
Supports aggressive driving detection, including sudden acceleration, sudden deceleration, and sharp turns.
Supports two ultra-low power modes (2mA/5mA) for instant device response.
Built-in USB interface for portable storage device video export, enabling convenient data transfer.
Equipped with CAN bus for real-time vehicle data collection.
Supports mobile app for function settings, video playback, downloads, real-time streaming, and historical trajectory queries.
Easy installation with a compact design that does not obstruct the driver's view.
AI Features
The V8N supports ADAS, DMS, facial recognition, BSD, and aggressive driving detection, providing comprehensive monitoring of both vehicle and driver behavior. It uses voice alerts to remind the driver to drive safely in real-time and uploads events and alarm attachments to the platform.
*Warning: AI functions must be calibrated and configured strictly according to the installation and operation instructions; otherwise, the AI functions will not work properly.
ADAS
PCW
DMS
Facial Recognition
BSD
Aggressive-Driving
Warning tone
Function | Alarm Type | Voice prompts |
ADAS | Lane Departure | Lane Departure |
“ DiDi” | ||
Vehicle distance monitoring | Keep Your Distance | |
Front vehicle collision | Caution Collision | |
Camera occlusion | Camera Obstructed | |
PCW | Pedestrian collision | Caution Pedestrian |
Zebra crossing warning | Attention. Pedestrian Crosswalk | |
Front vehicle starts | Front Car Start | |
DMS | Yawning | Caution Fatigue |
Close your eyes | Caution Fatigue | |
Distraction | Caution Distraction | |
Make phone calls | Mobile Phone Detected | |
smokes | Smoking Detected | |
Infrared glasses blocking | Please Wear Suit Glasses | |
Not wearing seat belts | No Seatbelt Detected | |
Driver abnormality | Driver Abnormally | |
Camera occlusion | Camera Obstructed | |
Face Recognition | Face Recognition | successful Successful Authentication, Happy Driving |
Authentication Failed | ||
BSD | Blind spot monitoring | Please pay attention to blind spot surveillance |
Aggressive driving | Rapid acceleration | Harsh Acceleration |
Rapid deceleration | Hard Braking | |
Sharp Turn | sharp turn | |
* Note: The specific prompt tone is subject to the actual broadcast content of the product | ||
Product model: V8N | |
system | Embedded Linux |
4G | LTE-FDD: B1/ 3/ 5/ 7/ 8/ 20/ 28 |
LTE - TDD : B38/ 40/ 41 | |
WCDMA : B1/ 5/ 8 | |
GSM / EDGE : B3/ 8 | |
Wi - Fi | 802.11b/g/n |
storage | |
TF storage card | l TF Card *2 (maximum supported 2 TB ） |
l patent DXR Stream storage format | |
Audio / Video | |
Audio and video input | l Host comes with 1 Channel Audio MIC |
l common 4 Video input: 【default】 | |
No. 1 Road: Front-facing camera built into the host; supports wide dynamic range and starlight level No. 2 Road: host built-in internal camera; with IR - CUT Infrared fill light | |
【Extension】 | |
No. 3 Road: Optional, use camera AHD Standard; installed in the rear compartment or in the vehicle blind spot No. 4 Road: Optional, use camera AHD Standard; installed at the rear or side of the vehicle | |
Storage resolution | Maximum Capacity: |
1 Channel : 1080P@25 fps | |
2 Channel : 720P@25 fps | |
3 Channel: 720P@25 fps | |
4 Channel: 720P@25 fps | |
Recommended configuration: | |
Main stream 1080P@15 fps ( ADAS ) + 720P@15 fps ( DMS ) + 720P@15 fps ( AHD ) + 720P@15 fps ( AHD ) | |
Substream D1@15fps ( ADAS ) + D1@15fps ( DMS ) + D1 @15fps ( AHD ) + D1@15fps ( AHD ) | |
Video Output | l Optional video installation cable, including 1 Channel video output |
l Output Format: AHD | |
l Can connect to an external monitor to view real-time video | |
Video Encoding | Optional: H.264 and H.265 |
Default: H.264 | |
Audio Coding | Optional: G.711A 、 G711U 、 G726 、 AMR |
Default: G.711A | |
CBR/VBR | Optional: CBR and VBR |
Default: CBR | |
Parameters of the host's built-in front-facing camera | |
Option 1 | |
sensor type | IMX 335 (Sony) 500 10,000 ( 4:3 ) 1/2.8 |
Lenses | l Focal length: 2.9 mm |
l HFOV: 106 ° ; VFOV: 77 ° ; DFOV: 139 ° ; Error : ± 5 ° | |
Resolution | Highest support 2560*1920P |
Wide dynamic range | support |
Starlight | support |
Option II | |
sensor type | SC 200 AI ( Smartsens ) 200 10,000 ( 16:9 ) 1/2.8 |
Lenses | l Focal length: 2.9 mm |
l HFOV: 115 ° ; VFOV: 61 ° ; DFOV: 137 ° ; Error : ± 5 ° | |
Resolution | Highest support 1920*1080P |
Wide dynamic range | support |
Starlight | support |
third solution | |
sensor type | GC 2053 200 10,000 ( 16:9 ) 1/2.9 |
Lenses | l Focal length: 2.9 mm |
l HFOV: 112 ° ; VFOV: 77 ° ; DFOV: 139 ° ; Error : ± 5 ° | |
Resolution | Highest support 1920*1080P |
Wide dynamic range | not support |
Starlight | support |
Parameters of the internal camera built into the host | |
sensor type | GC 2083 200 Ten thousand ( 16:9 ) 1/3 |
Lenses | l Focal length: 2.0 mm |
l HFOV: 152 ° ; VFOV: 84 ° ; DFOV: 180 ° ; error : ± 5 ° | |
Signal-to-Noise Ratio | 37 dB |
Sensitivity | 3240 Mv / lux.s |
Resolution | Standard 1280*720P (optional 1080P ） |
sensor | |
Six-axis acceleration sensor | l Linear acceleration axis: X , Y , Z |
l Angular velocity axes: Yaw , Pitch , Roll | |
interface | |
USB | micro 5 Pin USB *1 |
I/O | l 6 Input ( ACC , Emergency, Turn left, right, 2 Road reserved) |
l Left and right turn: | |
(1) Configurable high input / low input valid ( through software APP Configuration) | |
(2) High level effective voltage: greater than 6.5V Low level effective voltage: less than 1.0V | |
(3) Current: greater than 0.1 mA | |
(4) Protection: Pressure resistance 60V Short circuit protection | |
SIM Booth | Micro SIM |
TF Booth | 2 indivual |
RS 232 | 1 indivual |
Button indicator light | |||
Reset button | Press 3 Seconds reset | ||
3 Single color indicator light | |||
Indicator Lights | Device Icons | Light status description | |
online |
| Green light: Successful launch | |
Light off: Not online | |||
position |
| Green light: Positioning successful | |
Indicator Lights | Light off: Not positioned | ||
Video |
| Green light: Normal recording | |
Light off: Video recording abnormality | |||
Alarm key function | Standard emergency alarm connector | ||
position | |
GNSS | l P1311 |
l Support: Beidou / GPS | |
l Support single Beidou | |
Power supply related | |
Operating Voltage | l Original car battery: 12V/24V (adaptive) |
l Operating voltage range: 8V~36V | |
Super capacitor | Built-in supercapacitor, the front-facing camera supports continuous recording after the host loses power 1 Second Purpose: To avoid abnormal power outages that may cause data loss and equipment damage |
Power consumption | To be determined |
environment | |
Operating temperature | -30 ℃ ~80 ℃ |
storage temperature | -40 ℃ ~80 ℃ |
Working humidity | 15%~95% Non-condensing |
Storage humidity | 15%~95% Non-condensing |
Protection level | IP30 |
size and weight | |
size(Length * Width * Height) | 111.9 mm *67.4 mm *32.9 mm |
(Only the middle part of the main unit, excluding the top mounting bracket and the inner camera below) Error: ±1 mm | |
weight | Net weight (main unit only ): 316g Error: ±10g |
*Actual size and weight may vary due to individual product differences, manufacturing processes and testing methods. | |
Package Contents | Standard configuration: host, adapter cable, extension cable, emergency alarm button, installation wrench |
Optional: Video installation line, AHD Camera, external monitor, OBD Connector wire | |

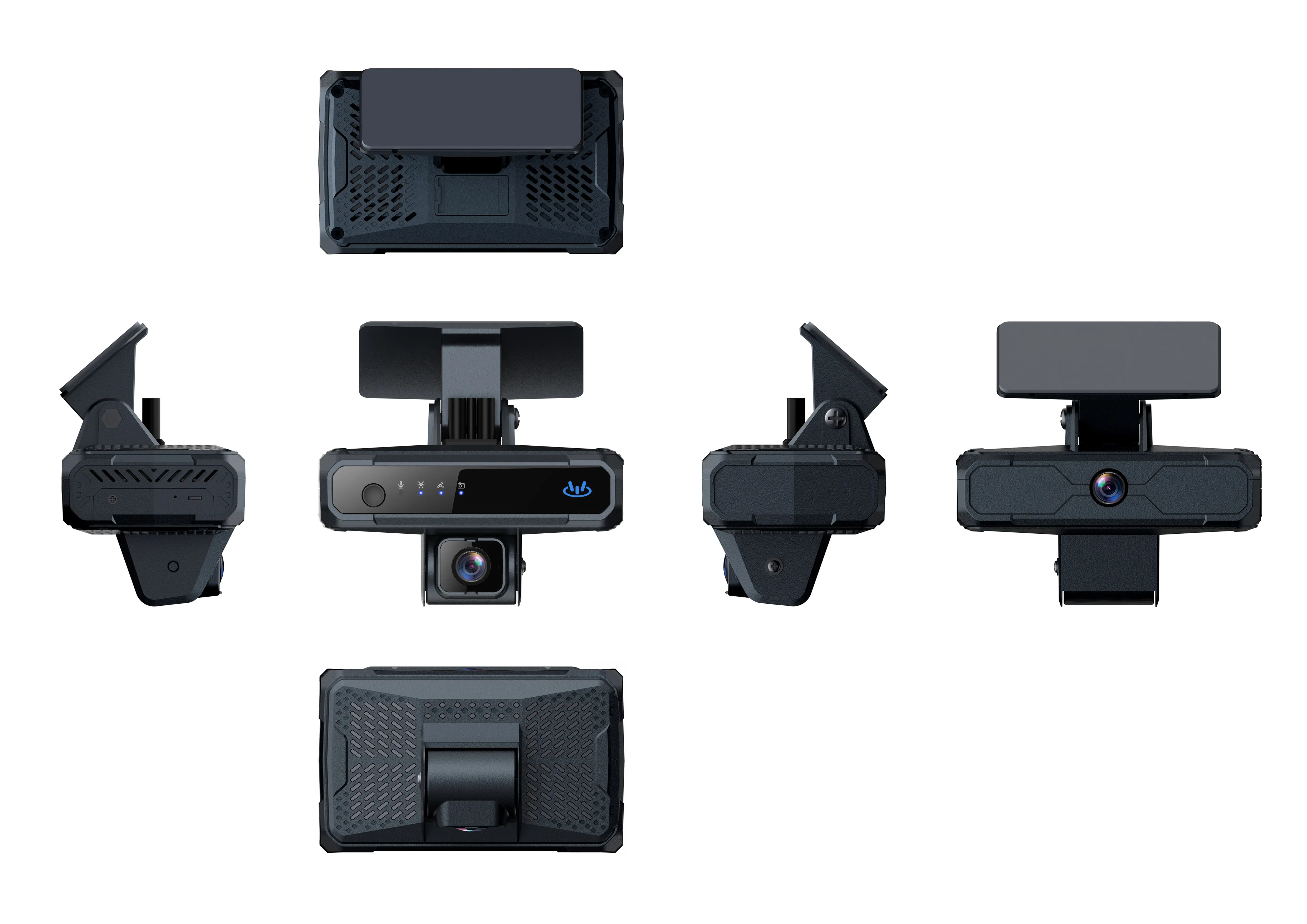

5. Product Structure Diagram

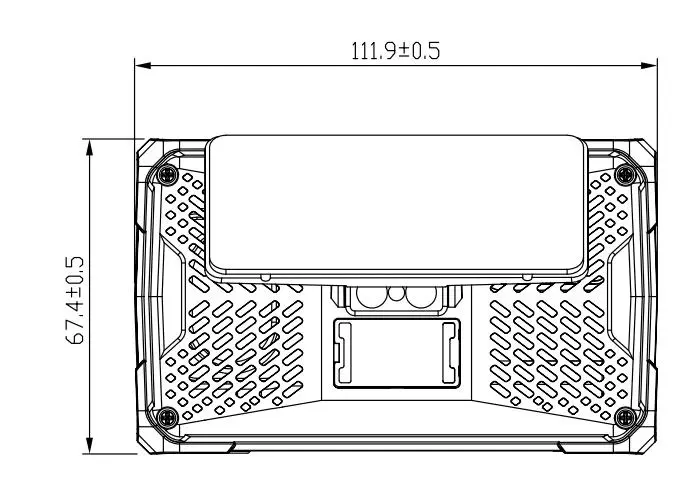

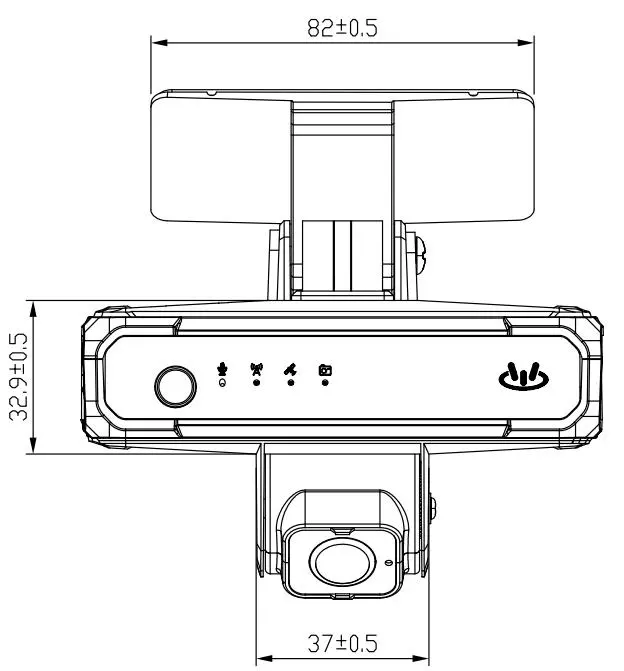

5.1 Product appearance size
5.2 Indicator light /MIC
5.3 TF Card /SIM Card /USB Location / Button

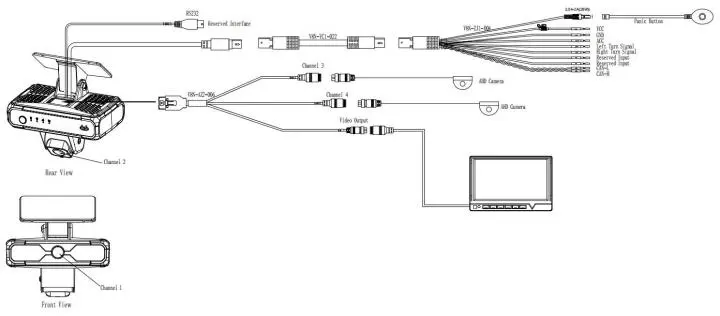

6. Product Wiring Diagram
6.1 Cable wiring diagram
