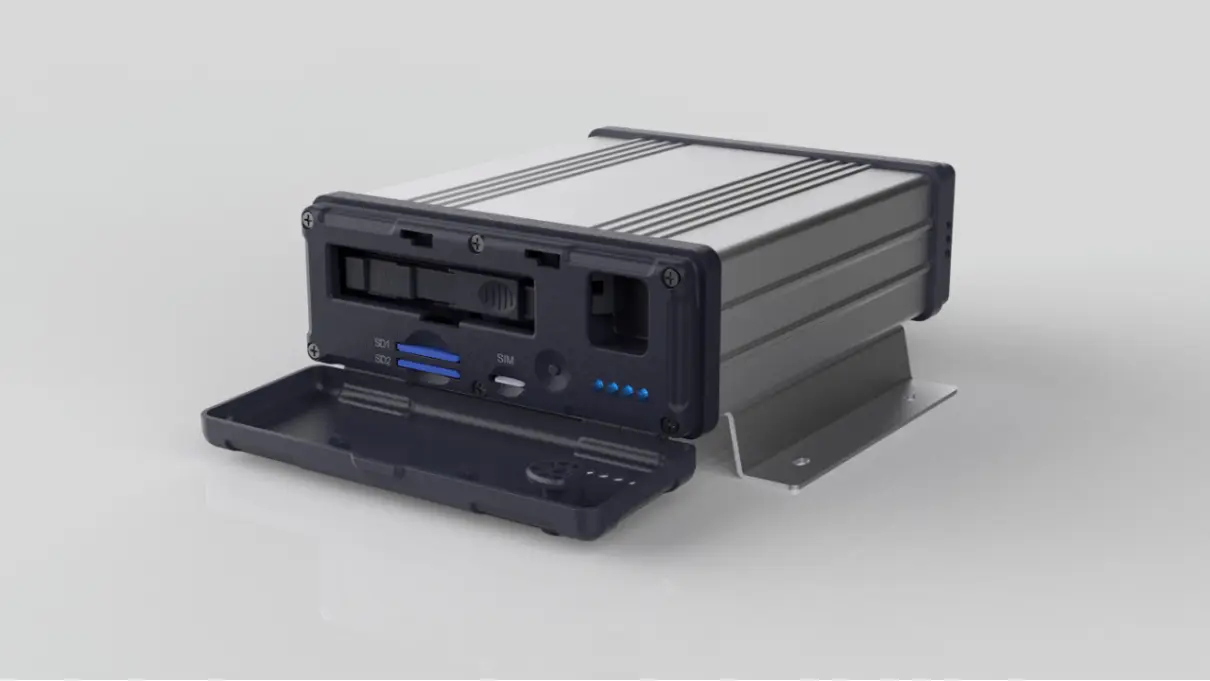

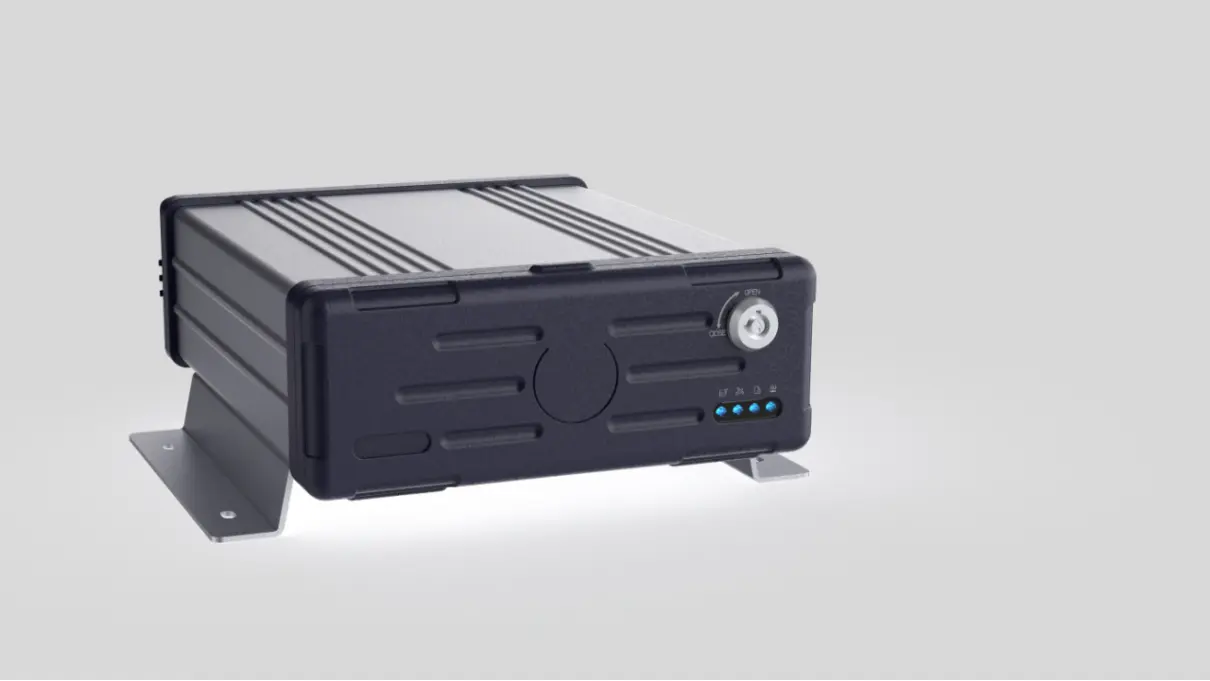

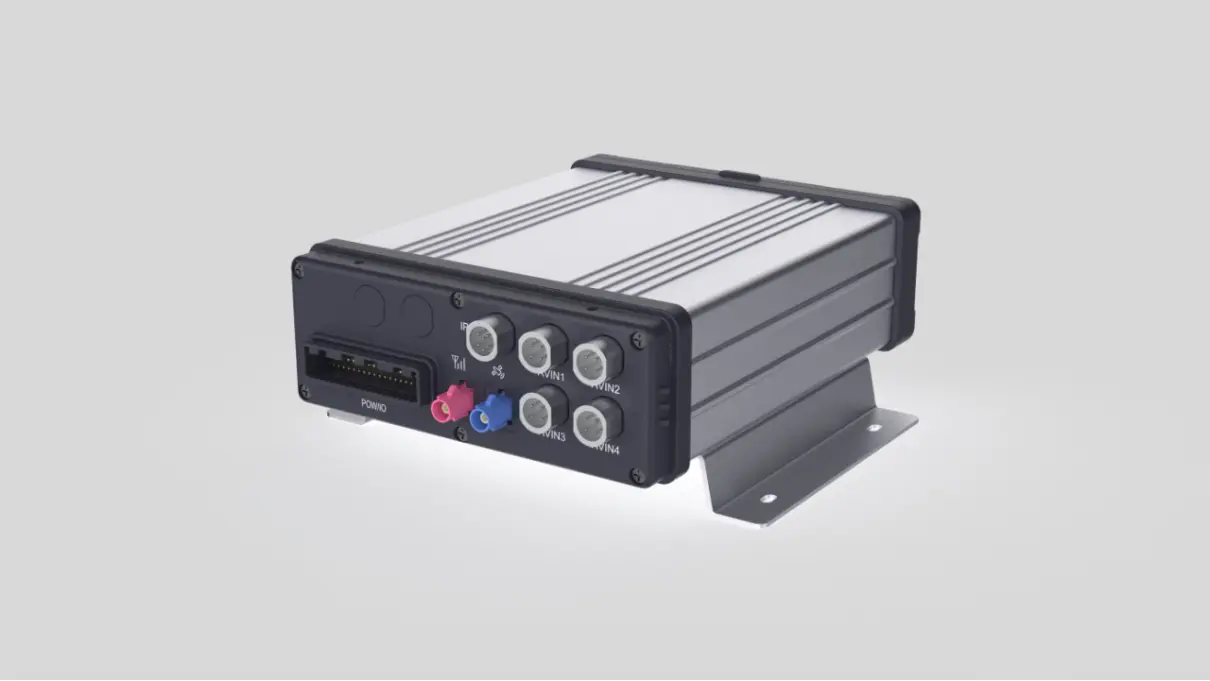

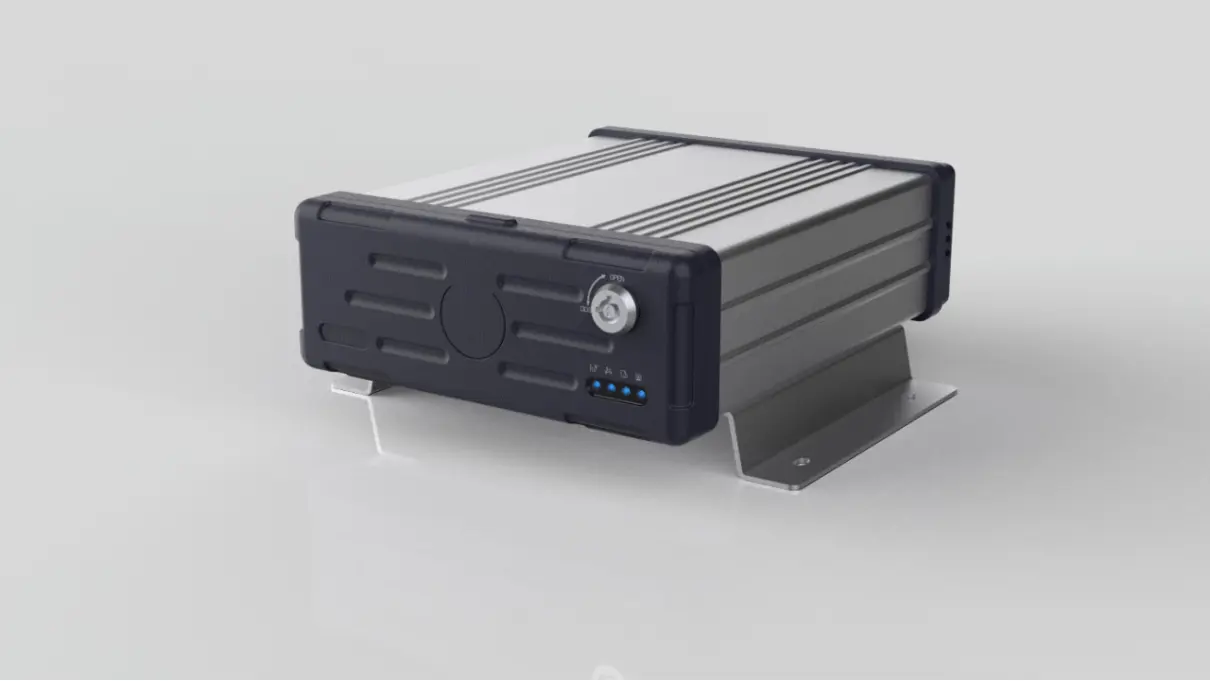

4 Channel Mobile DVR Camera System

F4, a cutting-edge high-definition intelligent Al mobile DVR. Built with an industri-al-grade core high-speed processing chip, it combines global 4G wireless transmis-sion, WIFI communication, DVR functionality, and BDS/GPS dual-mode positioning.

F4 is designed to provide comprehensive vehicle driving records and video surveil-lance capabilities. Equipped with powerful Al computing power, the F4 supports ad-vanced monitoring features such as ADAS (Advanced Driving Assistance System), BSD(Blind Spot Detection), DSM (Driver Status Monitor), passenger status, carriage loading, and cargo condition. This ensures a high level of intelligent monitoring and enhances overall safety.

Mobile DVR Features

1. The technical core of the dangerous driving warning system and the driver status monitoring system has an internationally leading visual recognition algorithm engine, which is accurate and reliable;

2. Support intelligent monitoring functions such as ADAS (Advanced Driver Assistance System), BSD (Blind Spot Detection) and DSM (Driver Behavior Safety Warning), passenger status, compartment loading status and cargo status;

3. Support network remote upgrade program; support GPS/Beidou satellite real-time positioning;

4. Support 6 channels of analog video input; including 2 channels of 1080P high-definition video, 2 channels of audio input, 1 channel of IPC input, 1 channel of CVBS output, all-round audio and video intelligent monitoring and recording;

5. The data supports hard disk storage and SD card storage; dual storage ensures data security.

6. Hard disk shockproof protection mechanism;

7. Support built-in protection memory;

8. UPR (Uninterruptible Power Recording) function to ensure that the video will not be lost at the moment of power failure;

9. Low voltage protection function to ensure the safety of vehicle batteries;

10. Patented storage medium protection device to prevent the hard disk and SD card from being disassembled at will;

11. Support the next generation video standard H265;

12. Single board design, high integration and high reliability;

13. Unique streaming media file system storage method to ensure data security from tampering

Mobile DVR Function Description

Fleet Tracking Management

Suitable for passenger cars, trucks, dump trucks, commercial concrete trucks, buses, school buses, cold chain trucks, sanitation vehicles, construction machinery and other industries.

GPS positioning

The GPS positioning function can record vehicle location, speed, direction and other information, and save it synchronously with video recordings.

BDS positioning

BSD positioning is a satellite navigation system independently developed by China, providing positioning, navigation and time services with global coverage.

CAN Data Collection

To acquire vehicle and engine telematics data

Video

H265/H264; 6 channelAHD video input

Storage

2.5 inch mechanical/solid-state drive;2*SD cards, pluggable

Cloud storage

Capable of storing hours of footage with options to stream or download.

Alarm

Emergency alarm, parking timeout alarm. overspeed alarm, line deviation alarm. power failure alarm, low power alarm. GPS fault alarm, GPS/4G antenna open/short circuit alarm, etc.

Vehicle monitoring

Vehicle automatic monitoring and positioning function, Geo-fence function mileage statistics, blind spot reporting function, trajectory storage function etc.

Voice calls

Support call and remote monitoring functions.;TTS text and voice broadcasting functions

Mobile DVR Specification parameters
